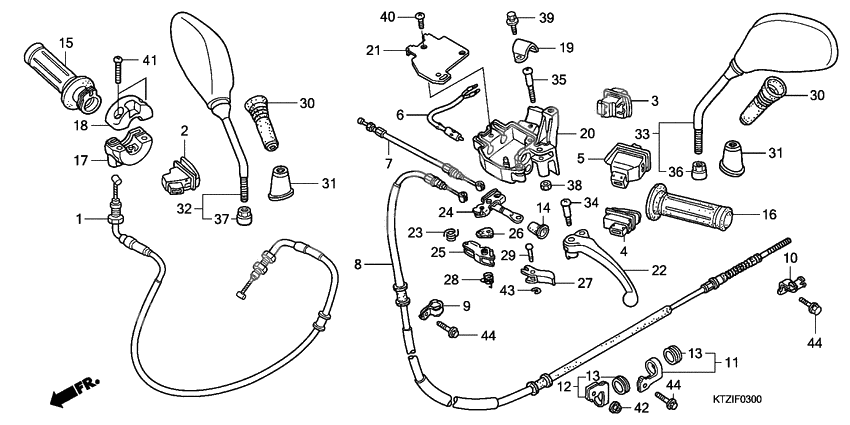

Handle lever/switch/cable
Handle lever/switch/cable
Cable comp (Ref #1)
1
Part #17910-KTZ-D01
Switch unit, starter (Ref #2)
2
Part #35160-KFG-003
Switch unit (Ref #3)
3
Part #35170-KFG-013
Sw.unit,horn (Ref #4)
4
Part #35180-GAV-701
Sw.unit,winker (Ref #5)
5
Part #35200-GAV-701
Switch, fr. stop (Ref #6)
6
Part #35340-GZ9-003
Cable, fr (Ref #7)
7
Part #43440-KTF-640
Cable comp (Ref #8)
8
Part #43450-KTZ-D00
Clamper,rr brk ca (Ref #9)
9
Part #43455-GCK-000
Clamper,rr brk ca (Ref #10)
10
Part #43456-KGF-900
Guide assy,brk ca (Ref #11)
11
Part #43460-KEY-900
Guide assy,brk ca (Ref #12)
12
Part #43460-KGF-900
Guide, cable (inner) (Ref #13)
13
Part #45466-329-000
Guide, cable (inner) (Ref #13)
13
Part #45466-329-000
Guide, cable (inner) (Ref #13)
13
Part #45466-329-000
Guide, cable (inner) (Ref #13)
13
Part #45466-329-000
Ботинок (Ref #14)
14
Part #45504-410-003
Grip comp,throt (Ref #15)
15
Part #53140-KPZ-900
Grip,l.handle (Ref #16)
16
Part #53166-GW2-000
Housing,und throt (Ref #17)
17
Part #53167-GAH-A00
Housing,up throt (Ref #18)
18
Part #53168-GAH-A00
Band,handle brkt (Ref #19)
19
Part #53171-GBL-870
BRACKET (Ref #20)
20
Part #53172-GCS-010
Cover,l brk lever (Ref #21)
21
Part #53173-KGF-900
Lever,l strg hand (Ref #22)
22
Part #53178-GCS-000
Spring,rr brk loc (Ref #23)
23
Part #53182-GCS-000
Equalizer comp (Ref #24)
24
Part #53184-KGF-900
Arm comp,rr brk l (Ref #25)
25
Part #53185-KGF-900
Cover,rr brk lock (Ref #26)
26
Part #53186-GCS-000
LEVER,BRAKE LOCK (Ref #27)
27
Part #53187-KGF-900
Spg,brk lock leve (Ref #28)
28
Part #53188-GCS-000
Pin,brk lock leve (Ref #29)
29
Part #53189-KGF-900
Boot, mirror (upper) (Ref #30)
30
Part #88113-KPR-900
Boot, mirror (upper) (Ref #30)
30
Part #88113-KPR-900
Boot, mirror (upper) (Ref #30)
30
Part #88113-KPR-900
Boot, mirror (upper) (Ref #30)
30
Part #88113-KPR-900
Boot, mirror (lower) (Ref #31)
31
Part #88114-KPR-900
Boot, mirror (lower) (Ref #31)
31
Part #88114-KPR-900
Boot, mirror (lower) (Ref #31)
31
Part #88114-KPR-900
Boot, mirror (lower) (Ref #31)
31
Part #88114-KPR-900
Mirror comp,r (Ref #32)
32
Part #88210-KGF-900
Mirror comp,l (Ref #33)
33
Part #88220-KGF-900
Болт (Ref #34)
34
Part #90113-KGF-900
Болт (Ref #35)
35
Part #90115-GBL-870
Nut, lock (Ref #36)
36
Part #90134-GM8-000
Nut,lock lh (Ref #37)
37
Part #90135-KGF-900
Nut, hex., 5mm (Ref #38)
38
Part #90302-435-761
Bolt-washer (Ref #39)
39
Part #93401-060-200-0
Болт (Ref #40)
40
Part #93500-050-120-H
Screw, pan, 5x22 (Ref #41)
41
Part #93500-050220A
Гайка (Ref #42)
42
Part #94050-06000
E-RING (Ref #43)
43
Part #94540-03018
