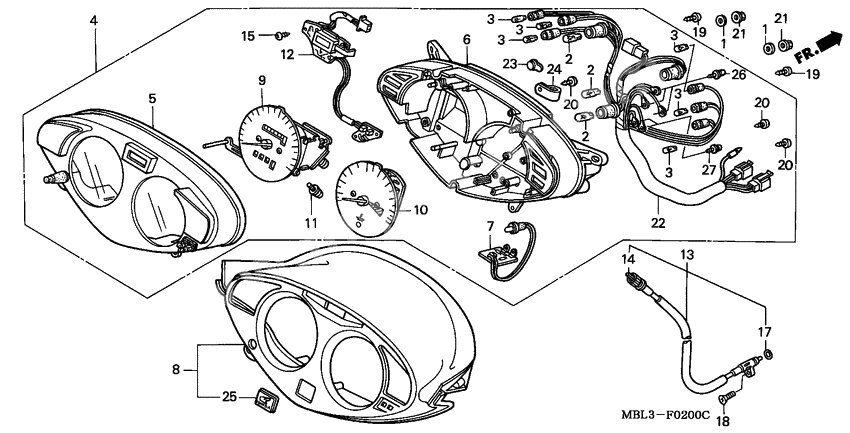

Meter
Meter
Washer, pivot (Ref #1)
1
Part #17936-921-000
Washer, pivot (Ref #1)
1
Part #17936-921-000
Washer, pivot (Ref #1)
1
Part #17936-921-000
Washer, pivot (Ref #1)
1
Part #17936-921-000
Meter assy comb (Ref #4)
4
Part #37100-MBL-731
Upper case assy (Ref #5)
5
Part #37102-MBL-611
Lower case assy (Ref #6)
6
Part #37103-MBL-731
Led temp ind comp (Ref #7)
7
Part #37104-MBL-611
Visor assy meter (Ref #8)
8
Part #37115-MBL-610
Панель измерителей (Ref #9)
9
Part #37200-MBL-611
TACHOMETER ASSY (Ref #10)
10
Part #37250-MBL-611
Screw-washer (Ref #11)
11
Part #90035-166-008
Clock assy (Ref #12)
12
Part #37460-MBL-611
Cable assy,spdmt (Ref #13)
13
Part #44830-MBL-610
Cable comp,inner (Ref #14)
14
Part #44831-MBL-610
Screw, tap (3x12) (Ref #15)
15
Part #90105-MT7-003
O-ring, 6.8x1.8 (Ref #17)
17
Part #91306-PJ4-000
Screw, oval (5x20) (Ref #18)
18
Part #93700-050200G
Болт (Ref #19)
19
Part #93903-24380
Болт (Ref #19)
19
Part #93903-24380
Болт (Ref #19)
19
Part #93903-24380
Болт (Ref #19)
19
Part #93903-24380
ナット (Ref #21)
21
Part #94050-06070
ナット (Ref #21)
21
Part #94050-06070
ナット (Ref #21)
21
Part #94050-06070
ナット (Ref #21)
21
Part #94050-06070
Socket comp (Ref #22)
22
Part #37105-MBL-731
CAP (Ref #23)
23
Part #37113-ML7-008
CLAMP (Ref #24)
24
Part #37215-MB6-831
Emblem,wing mark (Ref #25)
25
Part #86150-MW3-300
Screw-washer (Ref #26)
26
Part #90133-SL9-003
Screw-washer (Ref #27)
27
Part #90134-SH3-003
