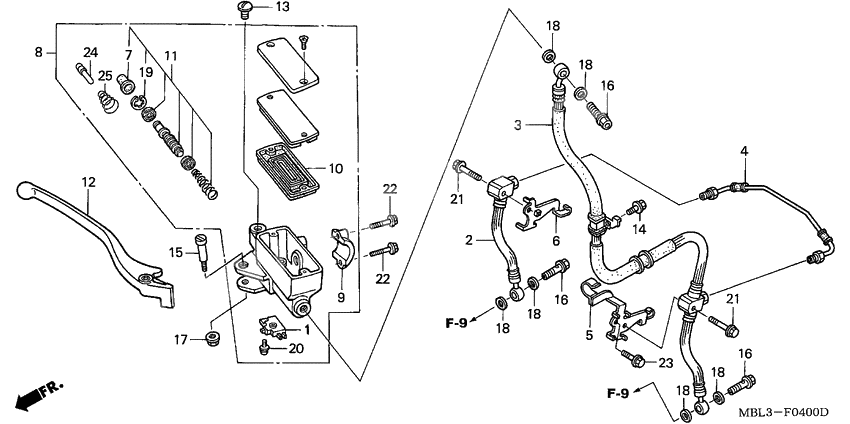

Fr. brake master cylinder NT650VW/X/Y/1
Fr. brake master cylinder NT650VW/X/Y/1
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Hose comp,r fr br (Ref #2)
2
Part #45124-MBL-731
Hose comp,l fr br (Ref #3)
3
Part #45125-MBL-731
Pipe comp,fr brk (Ref #4)
4
Part #45135-MBL-730
Stay,fr brk hose (Ref #5)
5
Part #45156-MBL-610
Stay,fr brk hose (Ref #6)
6
Part #45157-MBL-610
Boot comp. (Ref #7)
7
Part #45504-MAK-003
M/c sub assy,fr b (Ref #8)
8
Part #45510-MBL-611
Holder, master cylinder (Ref #9)
9
Part #45517-MBL-610
DIAPHRAGM (Ref #10)
10
Part #45520-MY5-731
Piston set,m/c,16 (Ref #11)
11
Part #45530-MBL-611
Lever assy,r hand (Ref #12)
12
Part #53170-MBL-611
Plug,handle lever (Ref #13)
13
Part #53174-MY5-G30
Болт (Ref #14)
14
Part #90102-MW3-600
Bolt flange lever (Ref #15)
15
Part #90114-MAK-003
Nut flange 6mm (Ref #17)
17
Part #90303-MAK-003
Circlip (Ref #19)
19
Part #90651-MAK-003
Screw-washer (Ref #20)
20
Part #93893-040-120-7
BOLT (Ref #21)
21
Part #95801-060-250-7
BOLT (Ref #21)
21
Part #95801-060-250-7
BOLT (Ref #21)
21
Part #95801-060-250-7
BOLT (Ref #21)
21
Part #95801-060-250-7
Болт (Ref #22)
22
Part #96001-0602207
Болт (Ref #22)
22
Part #96001-0602207
Болт (Ref #22)
22
Part #96001-0602207
Болт (Ref #22)
22
Part #96001-0602207
Толкатель (Ref #24)
24
Part #45525-MY5-G31
SPRING,PUSH ROD (Ref #25)
25
Part #45526-MY5-731
-
945517-MBL-611
Holder, master cylinder
1Replaced by 45517-MBL-610 Доступно: Нет в наличии
