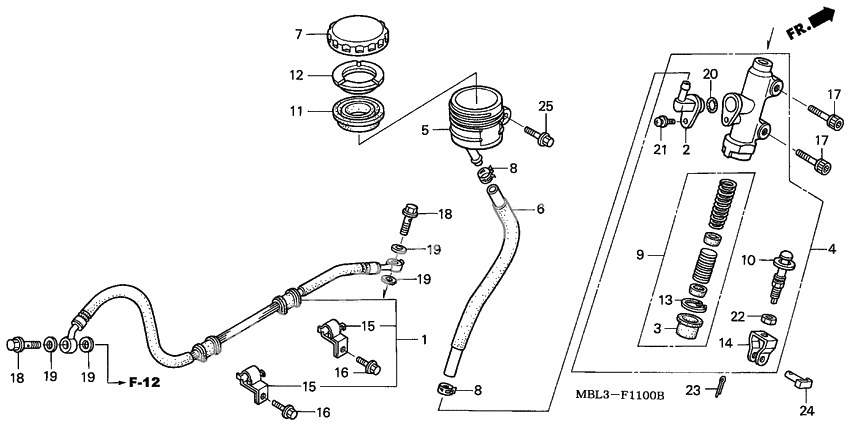

Rr. brake master cylinder NT650VW/X/Y/1
Rr. brake master cylinder NT650VW/X/Y/1
Hose comp,rr brk (Ref #1)
1
Part #43310-MBL-611
Коннектор (Ref #2)
2
Part #43503-MR7-006
Ботинок (Ref #3)
3
Part #43504-MB2-006
Sub assy,rear m/c (Ref #4)
4
Part #43510-MBL-611
Cup, oil (Ref #5)
5
Part #43511-MR7-016
Hose comp,rr brk (Ref #6)
6
Part #43512-MBL-611
Cap, oil cup (Ref #7)
7
Part #43513-MY1-006
CLAMP (Ref #8)
8
Part #43514-KS6-701
CLAMP (Ref #8)
8
Part #43514-KS6-701
CLAMP (Ref #8)
8
Part #43514-KS6-701
CLAMP (Ref #8)
8
Part #43514-KS6-701
PISTON SET (Ref #9)
9
Part #43520-MB2-315
Штанга (Ref #10)
10
Part #43530-MM5-006
DIAPHRAGM (Ref #11)
11
Part #45520-300-000
Пластина (Ref #12)
12
Part #45521-MJ6-006
Circlip (Ref #13)
13
Part #46182-500-013
Joint, brake rod (Ref #14)
14
Part #46504-KV6-702
Clamp, brake hose (Ref #15)
15
Part #52114-KY1-000
Clamp, brake hose (Ref #15)
15
Part #52114-KY1-000
Clamp, brake hose (Ref #15)
15
Part #52114-KY1-000
Clamp, brake hose (Ref #15)
15
Part #52114-KY1-000
Bolt, special (6x18) (Ref #16)
16
Part #90021-MZ1-000
Bolt, special (6x18) (Ref #16)
16
Part #90021-MZ1-000
Bolt, special (6x18) (Ref #16)
16
Part #90021-MZ1-000
Bolt, special (6x18) (Ref #16)
16
Part #90021-MZ1-000
Socket,bolt 6x40. (Ref #17)
17
Part #96700-060-400-0
Socket,bolt 6x40. (Ref #17)
17
Part #96700-060-400-0
Socket,bolt 6x40. (Ref #17)
17
Part #96700-060-400-0
Socket,bolt 6x40. (Ref #17)
17
Part #96700-060-400-0
Oil bolt,10x22 (Ref #18)
18
Part #90145-GBY-910
Oil bolt,10x22 (Ref #18)
18
Part #90145-GBY-910
Oil bolt,10x22 (Ref #18)
18
Part #90145-GBY-910
Oil bolt,10x22 (Ref #18)
18
Part #90145-GBY-910
Прокладка (Ref #20)
20
Part #91212-422-006
Screw-washer (Ref #21)
21
Part #93893-040-120-7
Гайка (Ref #22)
22
Part #94002-080-000-S
PIN (Ref #23)
23
Part #94201-20150
Pin d, joint (Ref #24)
24
Part #9501554000
BOLT (Ref #25)
25
Part #95701-060-120-0
