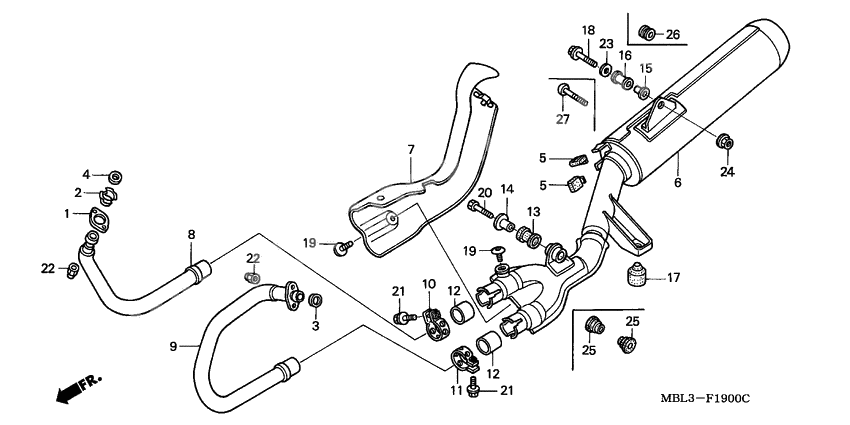

Exhaust muffler
Exhaust muffler
Joint,exh pipe (Ref #1)
1
Part #18231-MBL-600
Collar ,exh.pipe (Ref #2)
2
Part #18233-MBL-600
Gasket, ex. pipe (Ref #3)
3
Part #18291-MM5-860
Gasket, ex. pipe (Ref #4)
4
Part #18291-MN4-920
Rubber, protector (Ref #5)
5
Part #18293-MN0-000
Rubber, protector (Ref #5)
5
Part #18293-MN0-000
Rubber, protector (Ref #5)
5
Part #18293-MN0-000
Rubber, protector (Ref #5)
5
Part #18293-MN0-000
Muff.comp,exh. (Ref #6)
6
Part #18300-MBL-601
COVER,MUFFLER (Ref #7)
7
Part #18315-MBL-D00
Pipe fr.exhaust (Ref #8)
8
Part #18320-MBL-602
Pipe rr.exhaust (Ref #9)
9
Part #18370-MBL-601
Band, r. ex. pipe (Ref #10)
10
Part #18373-ML0-000
Band, l. ex. pipe (Ref #11)
11
Part #18374-ML0-000
Gasket, muffler (Ref #12)
12
Part #18391-MN5-650
Gasket, muffler (Ref #12)
12
Part #18391-MN5-650
Gasket, muffler (Ref #12)
12
Part #18391-MN5-650
Gasket, muffler (Ref #12)
12
Part #18391-MN5-650
Collar,muff.mount (Ref #14)
14
Part #18422-MBL-610
COLLAR (Ref #15)
15
Part #18422-MN5-000
RUBBER (Ref #16)
16
Part #50608-KV0-000
Rub,stand stpr. (Ref #17)
17
Part #50524-MG9-000
Болт (Ref #18)
18
Part #95801-0805000
Screw, pan, 6x10 (Ref #19)
19
Part #90105-MM4-000
Screw, pan, 6x10 (Ref #19)
19
Part #90105-MM4-000
Screw, pan, 6x10 (Ref #19)
19
Part #90105-MM4-000
Screw, pan, 6x10 (Ref #19)
19
Part #90105-MM4-000
Болт ,8X40 (Ref #20)
20
Part #90111-KV3-830
Болт (Ref #21)
21
Part #90161-ML7-000
Болт (Ref #21)
21
Part #90161-ML7-000
Болт (Ref #21)
21
Part #90161-ML7-000
Болт (Ref #21)
21
Part #90161-ML7-000
Гайка (Ref #22)
22
Part #90208-438-000
Гайка (Ref #22)
22
Part #90208-438-000
Гайка (Ref #22)
22
Part #90208-438-000
Гайка (Ref #22)
22
Part #90208-438-000
Шайба (Ref #23)
23
Part #90501-KAF-000
Nut, flange, 8mm (Ref #24)
24
Part #90234-147-000
Mount rubber,muff (Ref #25)
25
Part #18421-MBL-610
Mount rubber,muff (Ref #25)
25
Part #18421-MBL-610
Mount rubber,muff (Ref #25)
25
Part #18421-MBL-610
Mount rubber,muff (Ref #25)
25
Part #18421-MBL-610
