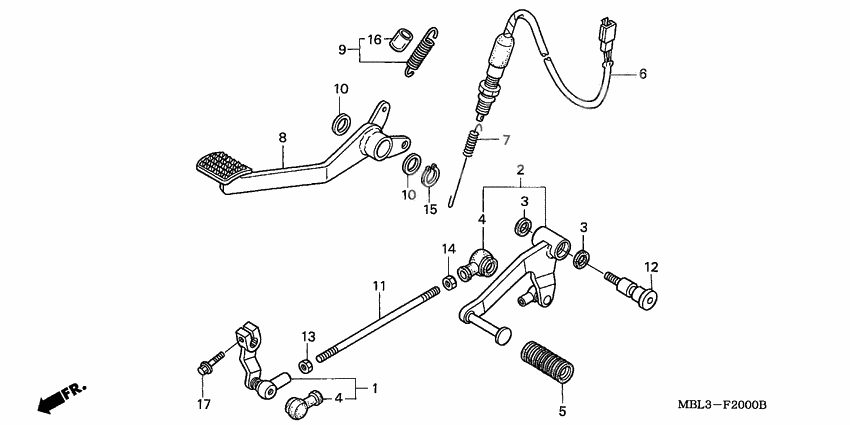

Brake pedal assy
Brake pedal assy
Arm comp,change (Ref #1)
1
Part #24702-MBL-610
Pedal comp,change (Ref #2)
2
Part #24705-MBL-610
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Rubber, gearshift (Ref #5)
5
Part #24781-449-000
Switch, rr. stop (Ref #6)
6
Part #35350-KR3-671
Spg,stop sw (Ref #7)
7
Part #35357-MBL-610
Pedal,rr brake (Ref #8)
8
Part #46500-MBL-610
Spg assy,brake pe (Ref #9)
9
Part #46516-MBL-610
Bush, washer (Ref #10)
10
Part #53312-657-000
Bush, washer (Ref #10)
10
Part #53312-657-000
Bush, washer (Ref #10)
10
Part #53312-657-000
Bush, washer (Ref #10)
10
Part #53312-657-000
Bolt,tie rod (Ref #11)
11
Part #90065-MBL-610
Bolt, change pivot (Ref #12)
12
Part #90115-KAF-000
Nut, governor arm fixing (left hand thread) (Ref #13)
13
Part #90201-700-000
Nut, hex. (6mm) (Ref #14)
14
Part #94002-060200S
Circlip, external, 15mm (Ref #15)
15
Part #9451115000
V.tube,14x18x20 (Ref #16)
16
Part #95003-450-021-0
Болт (Ref #17)
17
Part #96300-0602200
-
1390201-700-000
Nut, governor arm fixing (left hand thread)
