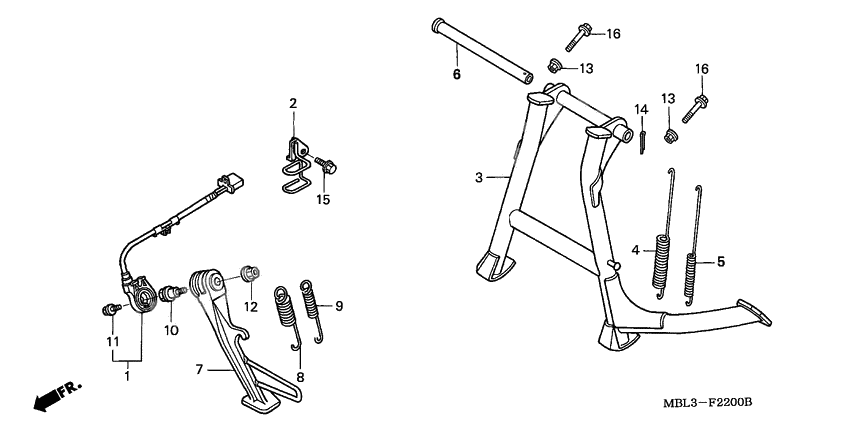

Stand comp
Stand comp
Set,side stand sw (Ref #1)
1
Part #35700-MBL-305
Guide,drain tube (Ref #2)
2
Part #50367-MBL-610
Stand comp.,main (Ref #3)
3
Part #50500-MBL-610
Spring,main stand (Ref #4)
4
Part #50501-MBL-610
Spg.,main stand s (Ref #5)
5
Part #50502-MBL-610
Pipe,main stand p (Ref #6)
6
Part #50526-MS9-000
Bar,side stand (Ref #7)
7
Part #50530-MBL-610
Spg,side stand (Ref #8)
8
Part #50541-MBL-610
Spg,side stand su (Ref #9)
9
Part #50542-MBL-610
BOLT (Ref #10)
10
Part #90108-MK6-670
Bolt, special (6x16) (Ref #11)
11
Part #90147-MCE-950
Nut, side stand (Ref #12)
12
Part #90203-MF9-710
Nut, flange (8mm) (Ref #13)
13
Part #90309-MR1-770
Nut, flange (8mm) (Ref #13)
13
Part #90309-MR1-770
Nut, flange (8mm) (Ref #13)
13
Part #90309-MR1-770
Nut, flange (8mm) (Ref #13)
13
Part #90309-MR1-770
PIN (Ref #14)
14
Part #9420125300
Болт (Ref #15)
15
Part #96300-060-120-0
Болт (Ref #16)
16
Part #96300-0804007
Болт (Ref #16)
16
Part #96300-0804007
Болт (Ref #16)
16
Part #96300-0804007
Болт (Ref #16)
16
Part #96300-0804007
