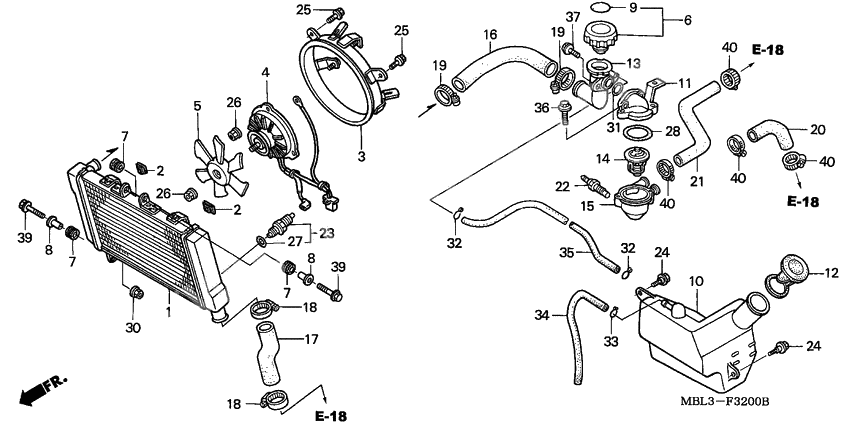

Radiator
Radiator
Radiator comp. (Ref #1)
1
Part #19010-MBL-611
Nut, set (Ref #2)
2
Part #19014-KEA-003
Nut, set (Ref #2)
2
Part #19014-KEA-003
Nut, set (Ref #2)
2
Part #19014-KEA-003
Nut, set (Ref #2)
2
Part #19014-KEA-003
Shroud comp. (Ref #3)
3
Part #19015-MBL-600
Motor assy,fan (Ref #4)
4
Part #19030-MBL-610
Fan, cooling (Ref #5)
5
Part #19040-MF5-751
Крышка радиатора (Ref #6)
6
Part #19045-MY3-621
COLLAR (Ref #8)
8
Part #19052-MGH-640
COLLAR (Ref #8)
8
Part #19052-MGH-640
COLLAR (Ref #8)
8
Part #19052-MGH-640
COLLAR (Ref #8)
8
Part #19052-MGH-640
Seal, radiator cap (Ref #9)
9
Part #19055-MV9-881
Tank,reserve (Ref #10)
10
Part #19101-MBL-610
CAP,THERMOSTAT (Ref #11)
11
Part #19103-MZ6-730
Cap, reserve tank (Ref #12)
12
Part #19104-MB0-700
Neck, filler (Ref #13)
13
Part #19106-MN8-000
Thermostat assy. (Ref #14)
14
Part #19300-KE8-000
Case, thermostat (Ref #15)
15
Part #19311-MZ6-730
Hose a,water (Ref #16)
16
Part #19505-MBL-600
Hose,radiator low (Ref #17)
17
Part #19506-MBL-600
Clamp, radiator hose (Ref #18)
18
Part #19509-MM5-003
Clamp, radiator hose (Ref #18)
18
Part #19509-MM5-003
Clamp, radiator hose (Ref #18)
18
Part #19509-MM5-003
Clamp, radiator hose (Ref #18)
18
Part #19509-MM5-003
Clamp (24-32mm) (Ref #19)
19
Part #19516-ML7-691
Clamp (24-32mm) (Ref #19)
19
Part #19516-ML7-691
Clamp (24-32mm) (Ref #19)
19
Part #19516-ML7-691
Clamp (24-32mm) (Ref #19)
19
Part #19516-ML7-691
Hose a, outlet water (Ref #20)
20
Part #19521-MN8-740
Hose b, outlet water (Ref #21)
21
Part #19522-MN8-000
Switch assy., thermo (Ref #22)
22
Part #37760-MAV-003
Switch assy., thermo (Ref #23)
23
Part #37760-MR1-003
BOLT (Ref #24)
24
Part #90111-162-000
BOLT (Ref #24)
24
Part #90111-162-000
BOLT (Ref #24)
24
Part #90111-162-000
BOLT (Ref #24)
24
Part #90111-162-000
Bolt-washer (6x16) (Ref #25)
25
Part #90120-KCR-003
Bolt-washer (6x16) (Ref #25)
25
Part #90120-KCR-003
Bolt-washer (6x16) (Ref #25)
25
Part #90120-KCR-003
Bolt-washer (6x16) (Ref #25)
25
Part #90120-KCR-003
Nut, serrate (5mm) (Ref #26)
26
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #26)
26
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #26)
26
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #26)
26
Part #90315-MK3-003
Прокладка (Ref #27)
27
Part #91307-PH7-660
Прокладка (Ref #28)
28
Part #91311-KE8-000
ナット (Ref #30)
30
Part #94050-06070
Прокладка (Ref #31)
31
Part #9460830000
CLIP (Ref #32)
32
Part #95002-02120
CLIP (Ref #32)
32
Part #95002-02120
CLIP (Ref #32)
32
Part #95002-02120
CLIP (Ref #32)
32
Part #95002-02120
CLIP (Ref #33)
33
Part #95002-70000
Tube (7x535) (Ref #34)
34
Part #95005-7053530
*95005-75001-20m (Ref #35)
35
Part #95005-759-502-0
BOLT (Ref #36)
36
Part #95701-060-200-7
BOLT (Ref #37)
37
Part #96001-060-140-0
Болт (Ref #39)
39
Part #96300-0602507
Болт (Ref #39)
39
Part #96300-0602507
Болт (Ref #39)
39
Part #96300-0602507
Болт (Ref #39)
39
Part #96300-0602507
