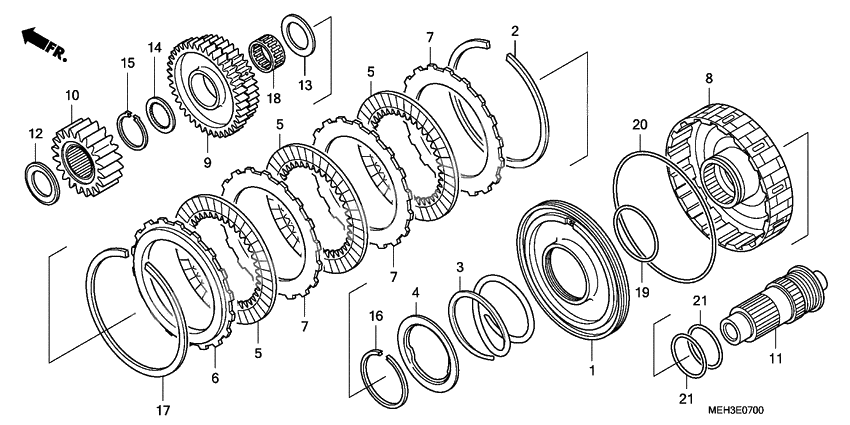

Сцепление
Сцепление
Piston, clutch (Ref #1)
1
Part #22530-HN8-003
Spring, clutch wave (Ref #2)
2
Part #22536-HN8-003
Пружина (Ref #3)
3
Part #22541-HN8-003
Seat, return spring (Ref #4)
4
Part #22542-HN8-003
PLATE (Ref #6)
6
Part #22557-P4R-003
PLATE (Ref #6)
6
Part #22556-P4R-003
PLATE (Ref #6)
6
Part #22555-P4R-003
PLATE (Ref #6)
6
Part #22554-P4R-003
PLATE (Ref #6)
6
Part #22553-P4R-003
PLATE (Ref #6)
6
Part #22552-P4R-003
PLATE (Ref #6)
6
Part #22551-P4R-003
Plate (12) (2.0mm) (Ref #6)
6
Part #22562-HN8-003
Plate (11) (1.9mm) (Ref #6)
6
Part #22561-HN8-003
Guide comp (Ref #8)
8
Part #22651-PLX-A01
Gear a (38t/38t) (Ref #9)
9
Part #23511-MEH-000
Gear b (20t) (Ref #10)
10
Part #23521-MEH-000
SHAFT (Ref #11)
11
Part #23600-MEH-000
Шайба (Ref #12)
12
Part #90403-HA7-670
Шайба (Ref #13)
13
Part #90403-KN7-670
Шайба (Ref #14)
14
Part #90451-MEH-000
Circlip (28mm) (Ref #15)
15
Part #90601-422-000
Circlip (Ref #16)
16
Part #90603-PL4-000
RING (Ref #17)
17
Part #90605-P24-A01
RING (Ref #17)
17
Part #90605-PC9-000
BEARING (Ref #18)
18
Part #91012-PZ4-003
Прокладка (Ref #19)
19
Part #91302-PL4-003
Прокладка (Ref #20)
20
Part #91303-PC9-004
Прокладка (Ref #21)
21
Part #91307-PA9-003
Прокладка (Ref #21)
21
Part #91307-PA9-003
Прокладка (Ref #21)
21
Part #91307-PA9-003
Прокладка (Ref #21)
21
Part #91307-PA9-003
