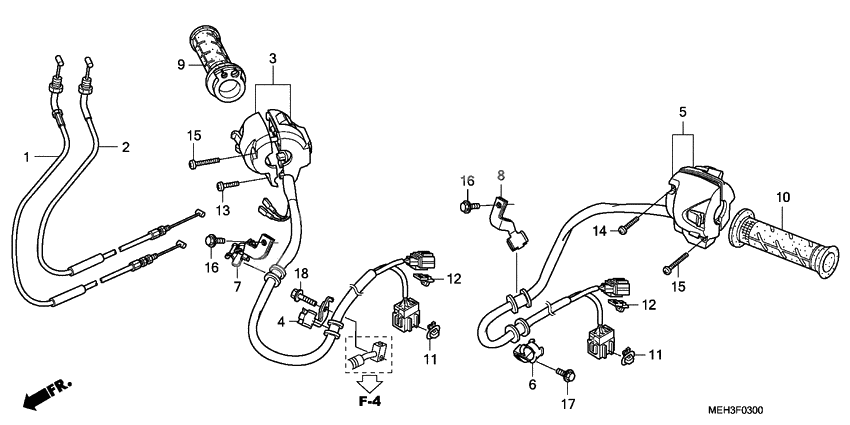

Switch/cable
Switch/cable
Cable a, throttle (Ref #1)
1
Part #17910-MEH-003
Cable b, throttle (Ref #2)
2
Part #17920-MEH-003
Switch assy (Ref #3)
3
Part #35130-MEH-003
Хомут (Ref #4)
4
Part #35135-MEH-000
Switch assy (Ref #5)
5
Part #35200-MEH-631
Струбцина L (Ref #6)
6
Part #35205-MEH-000
Clamp, r. brake hose (Ref #7)
7
Part #45164-MEH-000
Clamp, l. brake hose (Ref #8)
8
Part #45165-MEH-000
Зажим дросселя (Ref #9)
9
Part #53140-KPB-000
CLIP (Ref #10)
10
Part #91533-S04-003
CLIP (Ref #12)
12
Part #91565-SEL-003
CLIP (Ref #12)
12
Part #91565-SEL-003
CLIP (Ref #12)
12
Part #91565-SEL-003
CLIP (Ref #12)
12
Part #91565-SEL-003
Screw,pan,5x25 (Ref #13)
13
Part #93500-050250G
Screw, pan, 5x30 (Ref #14)
14
Part #93500-050300G
Screw, pan (5x35) (Ref #15)
15
Part #93500-050350G
Screw, pan (5x35) (Ref #15)
15
Part #93500-050350G
Screw, pan (5x35) (Ref #15)
15
Part #93500-050350G
Screw, pan (5x35) (Ref #15)
15
Part #93500-050350G
BOLT (Ref #16)
16
Part #96001-060-120-7
BOLT (Ref #16)
16
Part #96001-060-120-7
BOLT (Ref #16)
16
Part #96001-060-120-7
BOLT (Ref #16)
16
Part #96001-060-120-7
Bolt, flange, 6x14 (Ref #17)
17
Part #96001-0601407
Болт (Ref #18)
18
Part #96001-0602807
