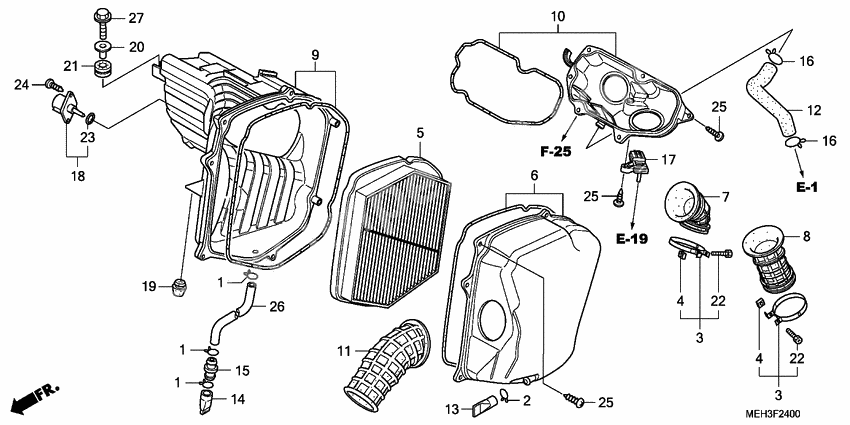

Воздушный фильтр
Воздушный фильтр
Clip, oil drain tube (Ref #2)
2
Part #15771-KV6-000
Band c, insulator (Ref #3)
3
Part #16219-MEE-000
Band c, insulator (Ref #3)
3
Part #16219-MEE-000
Band c, insulator (Ref #3)
3
Part #16219-MEE-000
Band c, insulator (Ref #3)
3
Part #16219-MEE-000
Nut, square (5mm) (Ref #4)
4
Part #16222-MV4-300
Nut, square (5mm) (Ref #4)
4
Part #16222-MV4-300
Nut, square (5mm) (Ref #4)
4
Part #16222-MV4-300
Nut, square (5mm) (Ref #4)
4
Part #16222-MV4-300
Фильтр воздушный (Ref #5)
5
Part #17210-MEH-000
Cover, air cleaner (Ref #6)
6
Part #17220-MEH-000
Funnel, fr. air (Ref #7)
7
Part #17226-MEH-000
Funnel, rr. air (Ref #8)
8
Part #17227-MEH-000
Case a, air cleaner (Ref #9)
9
Part #17230-MEH-000
Case b, air cleaner (Ref #10)
10
Part #17250-MEH-000
Duct, air cleaner (Ref #11)
11
Part #17253-MEH-000
TUBE (Ref #12)
12
Part #17265-MEH-000
Трубка дренажная (Ref #13)
13
Part #17358-HM8-000
Трубка дренажная (Ref #14)
14
Part #17358-MZ8-G20
Joint, breather tube (Ref #15)
15
Part #17359-428-000
CLIP (Ref #16)
16
Part #17724-102-700
CLIP (Ref #16)
16
Part #17724-102-700
CLIP (Ref #16)
16
Part #17724-102-700
CLIP (Ref #16)
16
Part #17724-102-700
Sensor assy., map (Ref #17)
17
Part #37830-MEL-003
Датчик (Ref #18)
18
Part #37880-P05-A00
Rubber c, stopper (Ref #19)
19
Part #50355-434-000
Collar, setting (Ref #20)
20
Part #61104-422-000
RUBBER (Ref #21)
21
Part #61304-415-000
Bolt (5x28) (Ref #22)
22
Part #90023-MM5-000
Bolt (5x28) (Ref #22)
22
Part #90023-MM5-000
Bolt (5x28) (Ref #22)
22
Part #90023-MM5-000
Bolt (5x28) (Ref #22)
22
Part #90023-MM5-000
Прокладка (Ref #23)
23
Part #91303-PK2-005
Screw, tap (5x16) (Ref #24)
24
Part #9390125310
Tube,8x550 (Ref #26)
26
Part #95005-805-502-0
Bolt, flange, 6x22 (Ref #27)
27
Part #95701-0602200
