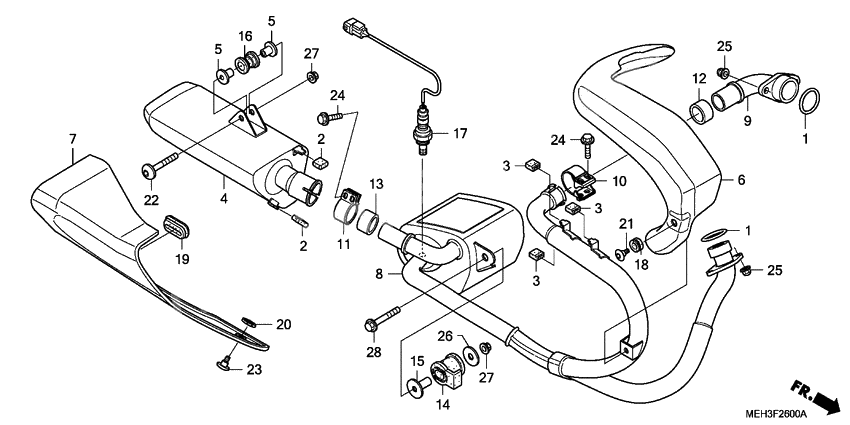

Exhaust muffler
Exhaust muffler
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
RUBBER (Ref #2)
2
Part #18293-MBC-000
RUBBER (Ref #2)
2
Part #18293-MBC-000
RUBBER (Ref #2)
2
Part #18293-MBC-000
RUBBER (Ref #2)
2
Part #18293-MBC-000
Muffler comp. (Ref #4)
4
Part #18310-MEH-003
Collar, rr. (8.5x15) (Ref #5)
5
Part #18327-KAE-000
Collar, rr. (8.5x15) (Ref #5)
5
Part #18327-KAE-000
Collar, rr. (8.5x15) (Ref #5)
5
Part #18327-KAE-000
Collar, rr. (8.5x15) (Ref #5)
5
Part #18327-KAE-000
Protector a (Ref #6)
6
Part #18341-MEH-000
Protr, fr. muffler (Ref #7)
7
Part #18342-MEH-000
Chamber comp (Ref #8)
8
Part #18350-MEH-003
Pipe, rr. ex. (Ref #9)
9
Part #18370-MEH-003
Band, muffler (Ref #10)
10
Part #18373-ML7-920
Band, muffler (Ref #11)
11
Part #18375-MEH-000
Packing,muffler (Ref #12)
12
Part #18391-ML8-000
Gasket, muffler (Ref #13)
13
Part #18392-MEH-000
RUBBER (Ref #14)
14
Part #18421-MEH-000
COLLAR (Ref #15)
15
Part #18422-MEH-000
Rubber, muff mt (Ref #16)
16
Part #18423-MEH-000
Sensor, oxygen (Ref #17)
17
Part #36531-MEH-003
Rubber,heat guard (Ref #18)
18
Part #50176-ML7-000
Уплотнение (Ref #19)
19
Part #83551-ME9-000
Washer, rubber (Ref #20)
20
Part #84708-KPM-000
Screw, pan (6x14) (Ref #21)
21
Part #90113-MM5-000
Socket bolt,8x45 (Ref #22)
22
Part #90128-MBE-000
Screw, pan (6x14) (Ref #23)
23
Part #90138-MCA-000
Болт (Ref #24)
24
Part #90161-ML7-000
Болт (Ref #24)
24
Part #90161-ML7-000
Болт (Ref #24)
24
Part #90161-ML7-000
Болт (Ref #24)
24
Part #90161-ML7-000
Гайка (Ref #25)
25
Part #90208-438-000
Гайка (Ref #25)
25
Part #90208-438-000
Гайка (Ref #25)
25
Part #90208-438-000
Гайка (Ref #25)
25
Part #90208-438-000
Washer, 8mm (Ref #26)
26
Part #90501-819-000
Гайка (Ref #27)
27
Part #94050-08000
Гайка (Ref #27)
27
Part #94050-08000
Гайка (Ref #27)
27
Part #94050-08000
Гайка (Ref #27)
27
Part #94050-08000
BOLT (Ref #28)
28
Part #95701-080-550-7
