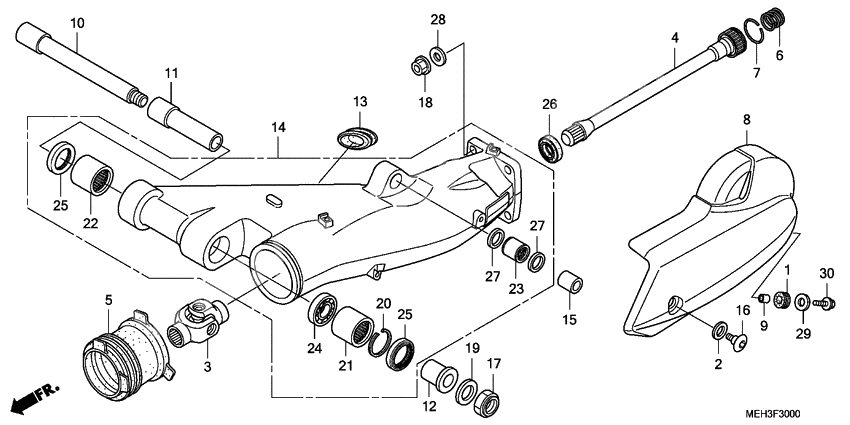

Arm swing
Arm swing
RUBBER (Ref #1)
1
Part #17416-MEE-770
PACKING (Ref #2)
2
Part #19012-PA0-004
Joint, yoke (Ref #3)
3
Part #40200-MR6-671
Гребной вал (Ref #4)
4
Part #40201-MEH-000
Boot, joint (Ref #5)
5
Part #40207-MEH-000
Пружина (Ref #6)
6
Part #40215-ME9-003
Кольцо (Ref #7)
7
Part #40221-MB0-000
Cover, final gear (Ref #8)
8
Part #41351-MEH-010
COLLAR (Ref #9)
9
Part #41357-MEH-000
Bolt, swingarm pivot (Ref #10)
10
Part #52101-MEH-000
COLLAR (Ref #11)
11
Part #52141-MEH-000
Collar, l (Ref #12)
12
Part #52143-MEH-000
Grommet, swingarm (Ref #13)
13
Part #52175-MEH-000
Swingarm sub, rr. (Ref #14)
14
Part #52200-MEH-010
Collar c (Ref #15)
15
Part #52464-KPE-900
BOLT (Ref #16)
16
Part #90102-MEH-000
Nut, u (18mm) (Ref #17)
17
Part #90305-KZ4-891
Nut, hex. (10mm) (Ref #18)
18
Part #90308-357-000
Шайба (Ref #19)
19
Part #90401-KZ4-890
Circlip (inner) (37) (Ref #20)
20
Part #90651-MEW-920
Bearing, needle (Ref #21)
21
Part #91071-MBW-E11
Bearing, needle (Ref #22)
22
Part #91071-MR7-003
Bearing (17x24x17) (Ref #23)
23
Part #91071-MY1-005
Bearing (20x37x9) (Ref #24)
24
Part #91072-MR7-003
Dust seal (28x37x4) (Ref #25)
25
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #25)
25
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #25)
25
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #25)
25
Part #91202-MR7-003
Oil seal (27x43x7) (Ref #26)
26
Part #91261-ME9-005
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #27)
27
Part #91262-KV3-831
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #27)
27
Part #91262-KV3-831
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #27)
27
Part #91262-KV3-831
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #27)
27
Part #91262-KV3-831
Washer, plain, 10mm (Ref #28)
28
Part #9410110000
Шайба (Ref #29)
29
Part #94103-06000
Bolt, flange, 6x22 (Ref #30)
30
Part #95701-0602200
