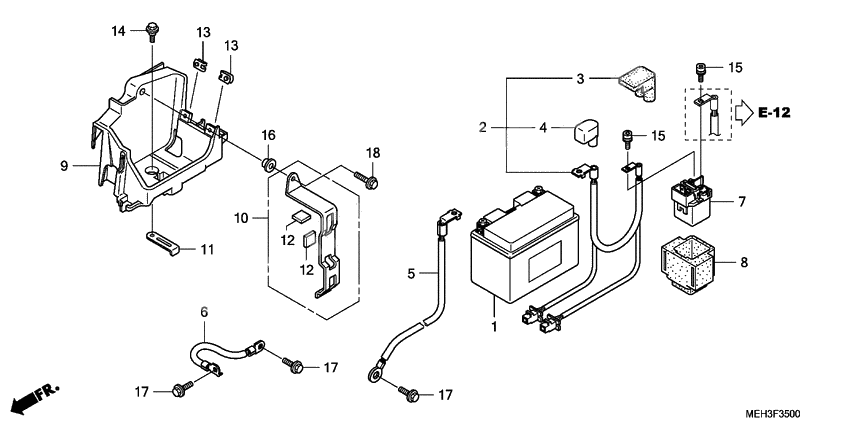

Battery
Battery
Аккумулятор (Ref #1)
1
Part #31500-MCR-D02
Cable (Ref #2)
2
Part #32401-MEH-000
COVER (Ref #3)
3
Part #32406-MT4-010
COVER (Ref #4)
4
Part #32414-MZ5-000
Cable (Ref #5)
5
Part #32601-MEH-000
Cable, frame ground (Ref #6)
6
Part #32602-MEH-000
Switch assy (Ref #7)
7
Part #35850-MY6-670
RUBBER (Ref #8)
8
Part #35856-KBG-007
Case, battery (Ref #9)
9
Part #50321-MEH-000
Комплект аккамулятора (Ref #10)
10
Part #50322-MEH-000
Band b, battery (Ref #11)
11
Part #50327-MEH-000
Cushion c, battery (Ref #12)
12
Part #50386-130-690
Cushion c, battery (Ref #12)
12
Part #50386-130-690
Cushion c, battery (Ref #12)
12
Part #50386-130-690
Cushion c, battery (Ref #12)
12
Part #50386-130-690
Nut, clip (4mm) (Ref #13)
13
Part #64521-MN5-000
Nut, clip (4mm) (Ref #13)
13
Part #64521-MN5-000
Nut, clip (4mm) (Ref #13)
13
Part #64521-MN5-000
Nut, clip (4mm) (Ref #13)
13
Part #64521-MN5-000
Bolt, fr. fender fixing (Ref #14)
14
Part #90106-MM9-000
Bolt, socket (5x9) (Ref #15)
15
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #15)
15
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #15)
15
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #15)
15
Part #90111-MR5-000
Washer, rr. cowl set (Ref #16)
16
Part #90511-MAT-000
BOLT (Ref #18)
18
Part #95701-060-160-7
