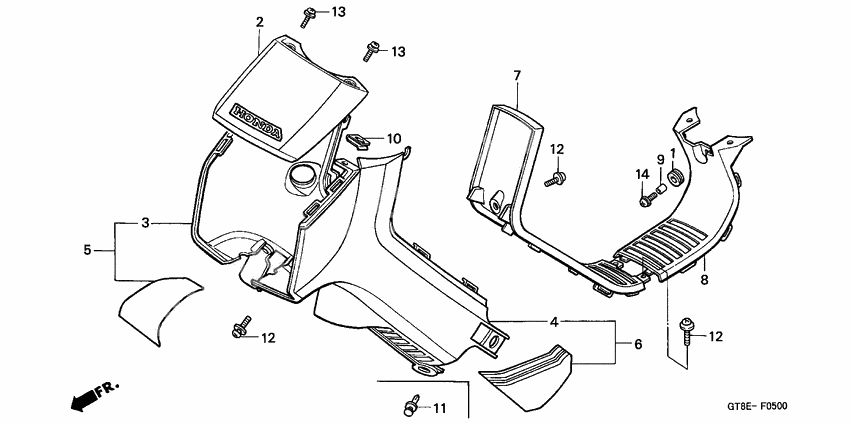

Front cover shutter
Front cover shutter
Grommet a, rr. cover (8x16x6.6) (Ref #1)
1
Part #11344-MB0-000
Set illus*type18* (Ref #2)
2
Part #64300-GT8-K40ZC
Set illus*type17* (Ref #2)
2
Part #64300-GT8-K40ZB
Set illus*type16* (Ref #2)
2
Part #64300-GT8-K40ZA
Cover,r fr*nh196* (Ref #3)
3
Part #64303-GT8-H00ZB
Cover,r fr*pb136* (Ref #3)
3
Part #64303-GT8-H00ZE
Cover,r fr.b*nh1* (Ref #3)
3
Part #64303-GT8-H00ZA
Cover l fr body nh19 (Ref #4)
4
Part #64304-GT8-600ZL
Cover,l.fr.b*nh1* (Ref #4)
4
Part #64304-GT8-600ZK
Cover,l fr*pb136* (Ref #4)
4
Part #64304-GT8-600YD
Cover,cen*nh261r* (Ref #7)
7
Part #80150-GT8-600ZA
Cover,cen*nh261r* (Ref #8)
8
Part #80160-GT8-600ZA
Collar (7.5x6.8) (Ref #9)
9
Part #90501-437-710
Nut, clip (5mm) (Ref #10)
10
Part #90677-GR1-003
Screw-washer (Ref #13)
13
Part #93891-050-160-7
Screw-washer (Ref #13)
13
Part #93891-050-160-7
Screw-washer (Ref #13)
13
Part #93891-050-160-7
Screw-washer (Ref #13)
13
Part #93891-050-160-7
Screw-washer (Ref #14)
14
Part #93894-050-200-7
