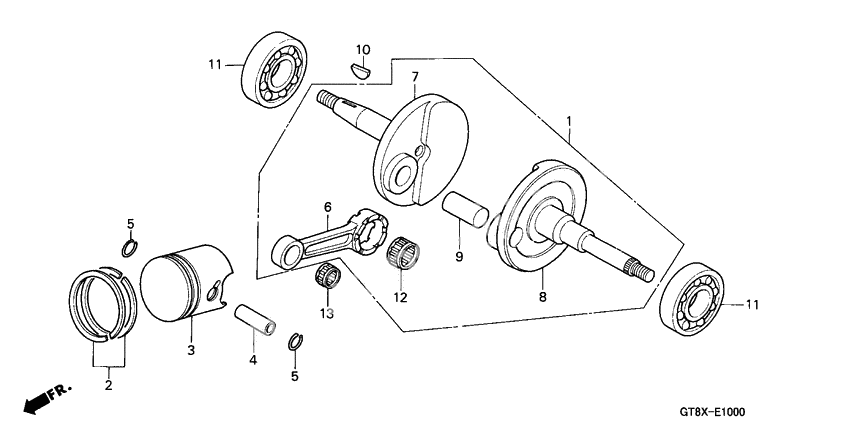

Crankshaft/piston
Crankshaft/piston
Crankshaft comp. (Ref #1)
1
Part #13000-GT8-601
Комплект колец (Ref #2)
2
Part #13011-GT8-305
Piston dd (Ref #3)
3
Part #13106-GT8-600
Поршень (Ref #3)
3
Part #13105-GT8-600
Piston cc (Ref #3)
3
Part #13104-GT8-600
PISTON (Ref #3)
3
Part #13103-GT8-600
Pin piston (Ref #4)
4
Part #13111-GT8-600
Clip,piston pin 1 (Ref #5)
5
Part #13115-GT8-600
Clip,piston pin 1 (Ref #5)
5
Part #13115-GT8-600
Clip,piston pin 1 (Ref #5)
5
Part #13115-GT8-600
Clip,piston pin 1 (Ref #5)
5
Part #13115-GT8-600
шатун (Ref #6)
6
Part #13201-GT8-601
Shaft,crank r (Ref #7)
7
Part #13311-GT8-600
Shaft,crank l (Ref #8)
8
Part #13321-GT8-600
Палец шатунный (Ref #9)
9
Part #13384-GT8-601
Палец шатунный (Ref #9)
9
Part #13383-GT8-601
Палец шатунный (Ref #9)
9
Part #13382-GT8-601
Палец шатунный (Ref #9)
9
Part #13381-GT8-601
Шпонка крыши (Ref #10)
10
Part #90741-GT8-600
Bearing (6204) (Ref #11)
11
Part #91001-GM4-033
Bearing (6204) (Ref #11)
11
Part #91001-GM4-033
Bearing (6204) (Ref #11)
11
Part #91001-GM4-033
Bearing (6204) (Ref #11)
11
Part #91001-GM4-033
Needle brg (Ref #12)
12
Part #91002-122-008
Brg,conn-rod smal (Ref #13)
13
Part #91102-GT8-600
