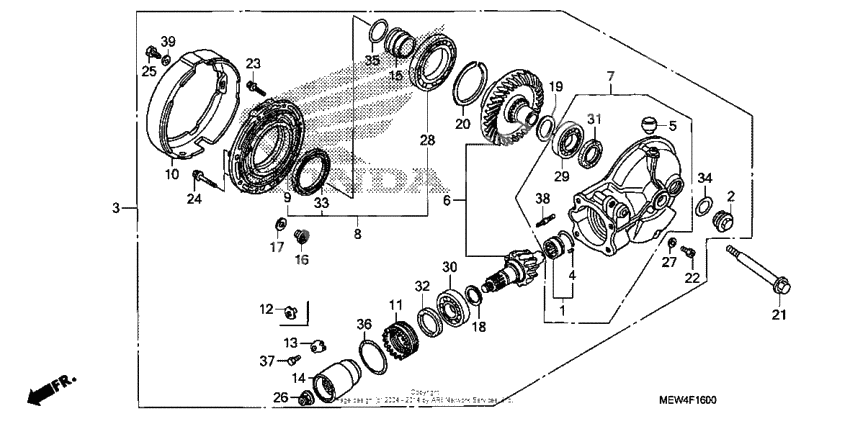

Final driven gear
Final driven gear
Bearing set, needle (Ref #1)
1
Part #06910-MBL-610
Cap, tappet adjusting hole (Ref #2)
2
Part #12361-300-000
Gear assy,, final (Ref #3)
3
Part #41300-MBL-612
Кольцо (Ref #4)
4
Part #41305-MB4-770
Cap, breather (Ref #5)
5
Part #41306-MB0-020
Gear set, final (Ref #6)
6
Part #41310-MM8-305
Case set, final (Ref #7)
7
Part #41311-MBL-611
Cvr sub, final gear (Ref #8)
8
Part #41320-MBL-611
Крышка редуктора (Ref #9)
9
Part #41321-ME5-771
Plate,dust guard (Ref #10)
10
Part #41324-MBL-610
Retainer, bearing (Ref #11)
11
Part #41331-ME9-010
Lock a, bearing adj. (Ref #12)
12
Part #41332-415-000
Lock b, bearing adj. (Ref #13)
13
Part #41333-415-000
Joint, pinion (Ref #14)
14
Part #41410-ME9-770
Holder, o-ring (Ref #15)
15
Part #41433-MB0-010
PIN (Ref #16)
16
Part #41436-MB0-310
Shim b (0.15) (Ref #17)
17
Part #41438-MB0-310
Shim a (0.10) (Ref #17)
17
Part #41437-MB0-310
Shim g (2.18) (Ref #18)
18
Part #41456-MG8-000
Shim f (2.12) (Ref #18)
18
Part #41455-MG8-000
Shim e (2.06) (Ref #18)
18
Part #41454-MG8-000
Shim d (2.00) (Ref #18)
18
Part #41453-MG8-000
Shim c (1.94) (Ref #18)
18
Part #41452-MG8-000
Shim b (1.88) (Ref #18)
18
Part #41451-MG8-000
Shim a (1.82) (Ref #18)
18
Part #41450-MG8-000
Шайба (Ref #19)
19
Part #41510-MB0-003
Spacer g (2.18) (Ref #20)
20
Part #41536-MB0-000
Spacer f (2.12) (Ref #20)
20
Part #41535-MB0-000
Spacer e (2.06) (Ref #20)
20
Part #41534-MB0-000
Spacer d (2.00) (Ref #20)
20
Part #41533-MB0-000
Spacer c (1.94) (Ref #20)
20
Part #41532-MB0-000
Spacer b (1.88) (Ref #20)
20
Part #41531-MB0-000
Spacer a (1.82) (Ref #20)
20
Part #41530-MB0-000
Spacer i (2.30) (Ref #20)
20
Part #41538-MB0-000
Spacer h (2.24) (Ref #20)
20
Part #41537-MB0-000
Axle,rr wheel (Ref #21)
21
Part #42301-MBL-610
Bolt, socket (8x11) (Ref #22)
22
Part #90109-ME5-770
Болт (Ref #23)
23
Part #90133-MB0-000
Болт (Ref #24)
24
Part #90134-HA0-000
Болт (Ref #25)
25
Part #90170-MB0-000
Nut, hex. (16mm) (Ref #26)
26
Part #90381-MB0-010
PACKING (Ref #27)
27
Part #90471-580-000
Bearing (16012c3) (Ref #28)
28
Part #91051-MB0-005
Bearing (57/34c3) (Ref #29)
29
Part #91052-MB0-003
Bearing (6305) (Ref #30)
30
Part #91061-MB0-005
Oil seal (34x50x7) (Ref #31)
31
Part #91261-MB0-003
Oil seal (39x51x7) (Ref #32)
32
Part #91262-ME9-005
Oil seal (60x80x8) (Ref #33)
33
Part #91265-MB0-003
O-ring, 30.8mm (Ref #34)
34
Part #91302-001-020
Прокладка (Ref #35)
35
Part #91356-MB0-005
O-ring, 58.5x3.5 (Ref #36)
36
Part #91359-MB0-000
BOLT (Ref #37)
37
Part #92101-06012-0A
Болт заклепка (Ref #38)
38
Part #92900-10032-0E
Шайба (Ref #39)
39
Part #94101-06800
