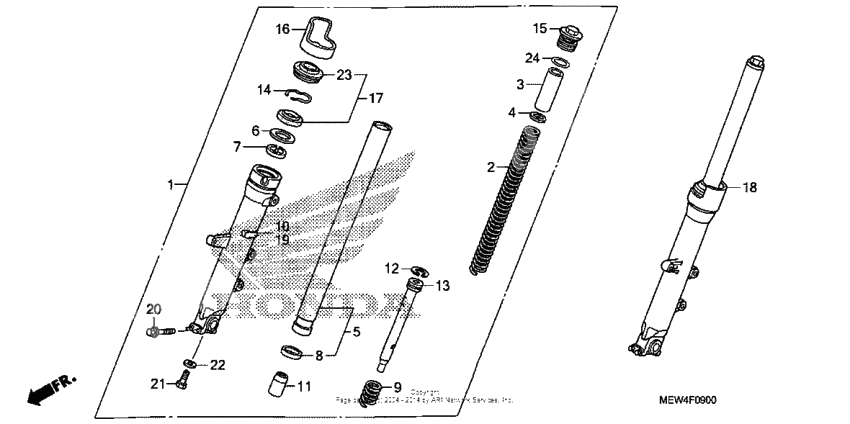

Front fork
Front fork
Fork assy,, r, fr, (Ref #1)
1
Part #51400-MEW-305
Spring, fr, fork (Ref #2)
2
Part #51401-MEW-921
Collar, spring (Ref #3)
3
Part #51402-MV8-901
Пружина (Ref #4)
4
Part #51403-MBL-611
Пружина (Ref #4)
4
Part #51403-KF0-003
Pipe, fr, fork (Ref #5)
5
Part #51410-MEW-D41
Ring, back-up (Ref #6)
6
Part #51412-MBL-611
Ring, back-up (Ref #6)
6
Part #51412-MB4-003
Направляющая втулка пера вилки (Ref #7)
7
Part #51414-MFJ-A51
Скользящая втулка пера вилки (Ref #8)
8
Part #51415-MFJ-A51
Spring, fr. rebound (Ref #9)
9
Part #51416-KF0-003
Spring, fr. rebound (Ref #9)
9
Part #51416-MBL-611
Case, r, (lower) (Ref #10)
10
Part #51420-MEW-921
Piece, oil lock (Ref #11)
11
Part #51432-MV9-003
Piece, oil lock (Ref #11)
11
Part #51432-MBL-D01
Кольцо поршневое (Ref #12)
12
Part #51437-MEW-921
Pipe, seat (Ref #13)
13
Part #51440-MEW-921
RING (Ref #14)
14
Part #51447-KA4-711
Ring, oil seal stop (Ref #14)
14
Part #51447-MBL-611
Bolt, fr, fork (Ref #15)
15
Part #51454-MER-D01
Protector, fork pipe (Ref #16)
16
Part #51460-MT3-611
Seal set, fr. fork (Ref #17)
17
Part #51490-MER-R61
Fork assy,, l, fr, (Ref #18)
18
Part #51500-MEW-305
Case, l, (lower) (Ref #19)
19
Part #51520-MEW-921
Болт (Ref #20)
20
Part #90109-MR7-000
Bolt, socket (8mm) (Ref #21)
21
Part #90116-KV3-701
Шайба (Ref #22)
22
Part #90544-283-000
DUST SEAL (Ref #23)
23
Part #91251-MKA-D81
Прокладка (Ref #24)
24
Part #91356-KF0-003
