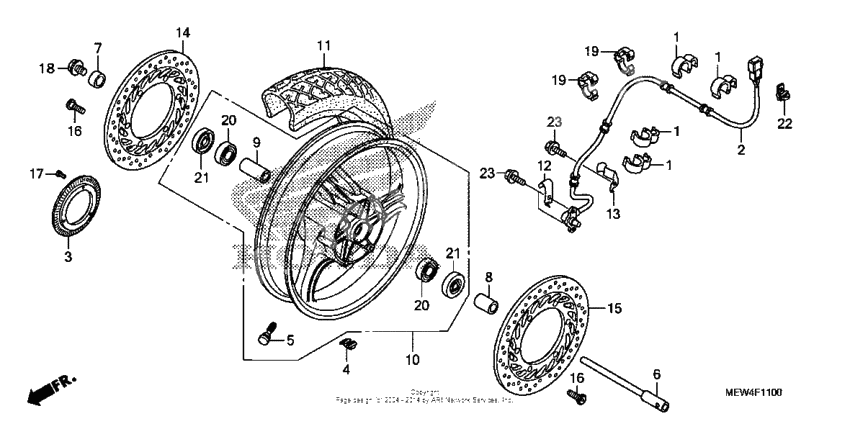

Front wheel
Front wheel
Sensor, fr, (Ref #2)
2
Part #38520-MEW-D50
Ring, pulser (Ref #3)
3
Part #42515-MEW-850
Грузик (Ref #4)
4
Part #42706-MER-D00
Грузик (Ref #4)
4
Part #42705-MER-D00
Грузик (Ref #4)
4
Part #42704-MER-D00
Клапан, обод колеса (Ref #5)
5
Part #42753-ML7-003
Axle, fr. wheel (Ref #6)
6
Part #44301-MM5-000
Collar,fr wheel s (Ref #7)
7
Part #44312-MBL-610
Collar, l, fr, (Ref #8)
8
Part #44312-MEW-920
Collar,fr axle di (Ref #9)
9
Part #44620-MBL-610
Wheel sub-assy,, fr, (Ref #10)
10
Part #44650-MEW-306
Tire (120/70zr17) (Ref #11)
11
Part #44711-MEW-923
CLAMP (Ref #12)
12
Part #45158-MEW-850
CLAMP (Ref #13)
13
Part #45161-MCW-D10
Disk, r, fr, brake (Ref #14)
14
Part #45251-MER-D01
Disk, l, fr, brake (Ref #15)
15
Part #45351-MER-D01
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Болт (Ref #17)
17
Part #90131-KPB-751
Bolt, fr. axle (Ref #18)
18
Part #90305-ML7-000
Clip, cable (14mm) (Ref #19)
19
Part #90690-MCA-003
Clip, cable (14mm) (Ref #19)
19
Part #90690-MCA-003
Clip, cable (14mm) (Ref #19)
19
Part #90690-MCA-003
Clip, cable (14mm) (Ref #19)
19
Part #90690-MCA-003
Bearing (6204uu) (Ref #20)
20
Part #91052-MAE-004
Bearing (6204uu) (Ref #20)
20
Part #91052-MAE-004
Bearing (6204uu) (Ref #20)
20
Part #91052-MAE-004
Bearing (6204uu) (Ref #20)
20
Part #91052-MAE-004
DUST SEAL (Ref #21)
21
Part #91253-MAE-003
DUST SEAL (Ref #21)
21
Part #91253-MAE-003
DUST SEAL (Ref #21)
21
Part #91253-MAE-003
DUST SEAL (Ref #21)
21
Part #91253-MAE-003
CLIP (Ref #22)
22
Part #91565-SEL-003
BOLT (Ref #23)
23
Part #96001-060-100-7
BOLT (Ref #23)
23
Part #96001-060-100-7
BOLT (Ref #23)
23
Part #96001-060-100-7
BOLT (Ref #23)
23
Part #96001-060-100-7
