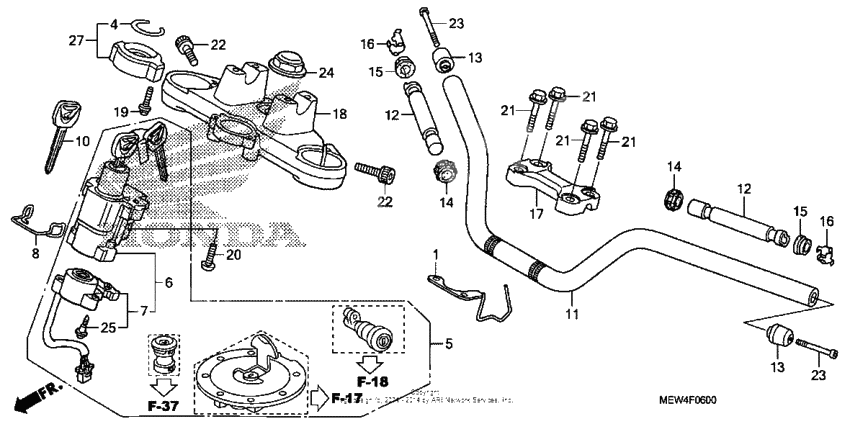

Handlebar + top bridge
Handlebar + top bridge
Seal (Ref #4)
4
Part #30433-MBW-602
Отсутствующе (Ref #5)
5
Part #35010-MEW-L00
Switch assy (Ref #6)
6
Part #35100-MEW-L01
Base, contact (Ref #7)
7
Part #35101-MEW-921
Направляющая (Ref #8)
8
Part #35105-MEJ-J00
Заготовка ключа (type1) (Ref #10)
10
Part #35121-MAS-G01
HANDLEBAR (Ref #11)
11
Part #53100-MEW-305
Weight b, handlebar (Ref #12)
12
Part #53104-MS2-000
Weight b, handlebar (Ref #12)
12
Part #53104-MS2-000
Weight b, handlebar (Ref #12)
12
Part #53104-MS2-000
Weight b, handlebar (Ref #12)
12
Part #53104-MS2-000
Weight, handlebar (Ref #13)
13
Part #53105-MCS-G00
Weight, handlebar (Ref #13)
13
Part #53105-MCS-G00
Weight, handlebar (Ref #13)
13
Part #53105-MCS-G00
Weight, handlebar (Ref #13)
13
Part #53105-MCS-G00
RUBBER (Ref #14)
14
Part #53106-MJ0-000
RUBBER (Ref #14)
14
Part #53106-MJ0-000
RUBBER (Ref #14)
14
Part #53106-MJ0-000
RUBBER (Ref #14)
14
Part #53106-MJ0-000
Rubber b (Ref #15)
15
Part #53107-MEW-920
Rubber b (Ref #15)
15
Part #53107-MEW-920
Rubber b (Ref #15)
15
Part #53107-MEW-920
Rubber b (Ref #15)
15
Part #53107-MEW-920
RING (Ref #16)
16
Part #53108-KR3-770
RING (Ref #16)
16
Part #53108-KR3-770
RING (Ref #16)
16
Part #53108-KR3-770
RING (Ref #16)
16
Part #53108-KR3-770
Hldr, handle (upper) (Ref #17)
17
Part #53131-MEW-920
Bridge, fork top (Ref #18)
18
Part #53230-MEW-920
ВИНТ С ШАЙБОЙ (Ref #19)
19
Part #90020-MBW-610
Bolt, one-way (8mm) (Ref #20)
20
Part #90107-MBG-000
Bolt, socket (8x32) (Ref #22)
22
Part #90160-MN0-000
Bolt, socket (8x32) (Ref #22)
22
Part #90160-MN0-000
Bolt, socket (8x32) (Ref #22)
22
Part #90160-MN0-000
Bolt, socket (8x32) (Ref #22)
22
Part #90160-MN0-000
Bolt, socket (6x75) (Ref #23)
23
Part #90191-MEW-920
Bolt, socket (6x75) (Ref #23)
23
Part #90191-MEW-920
Bolt, socket (6x75) (Ref #23)
23
Part #90191-MEW-920
Bolt, socket (6x75) (Ref #23)
23
Part #90191-MEW-920
Nut, steering stem (Ref #24)
24
Part #90304-MK4-000
Screw, tap (3x16) (Ref #25)
25
Part #91059-KY2-711
НАКЛАДКА ЗАМКА ЗАЖИГАНИЯ (Ref #27)
27
Part #35106-MAT-A00
