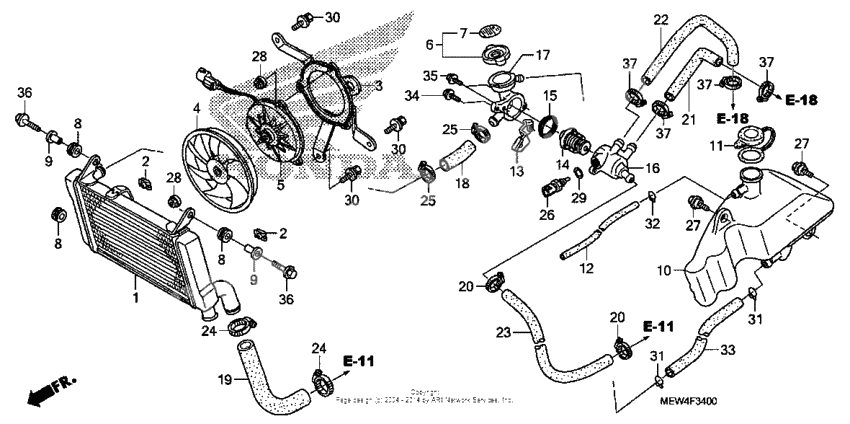

Radiator
Radiator
Радиатор (Ref #1)
1
Part #19010-MEW-315
Nut, set (Ref #2)
2
Part #19014-KEA-003
Nut, set (Ref #2)
2
Part #19014-KEA-003
Nut, set (Ref #2)
2
Part #19014-KEA-003
Nut, set (Ref #2)
2
Part #19014-KEA-003
SHROUD (Ref #3)
3
Part #19015-MEW-305
Fan, cooling (Ref #4)
4
Part #19020-MEE-003
Motor assy., fan (Ref #5)
5
Part #19030-MEW-D41
Стакан карбюратора (Ref #6)
6
Part #19037-GEE-710
LABEL (Ref #7)
7
Part #19046-PAA-A00
COLLAR (Ref #9)
9
Part #19052-MGH-640
COLLAR (Ref #9)
9
Part #19052-MGH-640
COLLAR (Ref #9)
9
Part #19052-MGH-640
COLLAR (Ref #9)
9
Part #19052-MGH-640
Tank, reserve (Ref #10)
10
Part #19101-MEW-305
Cap, reserve tank (Ref #11)
11
Part #19104-MB0-700
TUBE (Ref #12)
12
Part #19104-MEW-920
STAY (Ref #13)
13
Part #19105-MEW-920
Thermostat assy. (Ref #14)
14
Part #19300-MCH-A00
Rubber, thermostat (Ref #15)
15
Part #19305-KV3-010
Case, thermostat (Ref #16)
16
Part #19311-MEW-920
Cover, thermostat (Ref #17)
17
Part #19315-MEW-920
Hose, radiator (Ref #18)
18
Part #19501-MEW-920
Hose, radiator (Ref #19)
19
Part #19502-MEW-920
Clamp (25mm) (Ref #20)
20
Part #19504-KY1-003
Clamp (25mm) (Ref #20)
20
Part #19504-KY1-003
Clamp (25mm) (Ref #20)
20
Part #19504-KY1-003
Clamp (25mm) (Ref #20)
20
Part #19504-KY1-003
Hose, rr, (Ref #21)
21
Part #19504-MEW-920
Hose, fr, (Ref #22)
22
Part #19505-MEW-920
HOSE (Ref #23)
23
Part #19507-MEW-920
Clamp, radiator hose (Ref #24)
24
Part #19509-MM5-003
Clamp, radiator hose (Ref #24)
24
Part #19509-MM5-003
Clamp, radiator hose (Ref #24)
24
Part #19509-MM5-003
Clamp, radiator hose (Ref #24)
24
Part #19509-MM5-003
Clamp (24-32mm) (Ref #25)
25
Part #19516-ML7-691
Clamp (24-32mm) (Ref #25)
25
Part #19516-ML7-691
Clamp (24-32mm) (Ref #25)
25
Part #19516-ML7-691
Clamp (24-32mm) (Ref #25)
25
Part #19516-ML7-691
Sensor assy., water (Ref #26)
26
Part #37870-KRJ-901
BOLT (Ref #27)
27
Part #90111-162-000
BOLT (Ref #27)
27
Part #90111-162-000
BOLT (Ref #27)
27
Part #90111-162-000
BOLT (Ref #27)
27
Part #90111-162-000
Nut, serrate (5mm) (Ref #28)
28
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #28)
28
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #28)
28
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #28)
28
Part #90315-MK3-003
Шайба (Ref #29)
29
Part #90454-MC7-000
CLIP (Ref #31)
31
Part #95002-02120
CLIP (Ref #31)
31
Part #95002-02120
CLIP (Ref #31)
31
Part #95002-02120
CLIP (Ref #31)
31
Part #95002-02120
CLIP (Ref #32)
32
Part #95002-50000
Bulk hose (7.3x1000) (Ref #33)
33
Part #95005-750-0120M
BOLT (Ref #34)
34
Part #95701-060-200-0
Bolt, flange, 6x22 (Ref #35)
35
Part #96001-0602200
Болт (Ref #36)
36
Part #96300-0602507
Болт (Ref #36)
36
Part #96300-0602507
Болт (Ref #36)
36
Part #96300-0602507
Болт (Ref #36)
36
Part #96300-0602507
