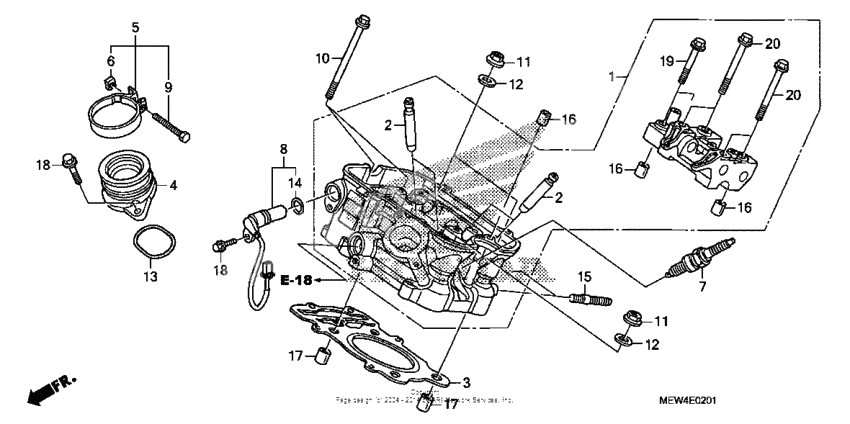

Rear cylinder head
Rear cylinder head
Cylinder head, rr, (Ref #1)
1
Part #12020-MEW-920
Направляющая клапана (Ref #2)
2
Part #12204-MEW-P00
Направляющая клапана (Ref #2)
2
Part #12204-MEW-P00
Направляющая клапана (Ref #2)
2
Part #12204-MEW-P00
Направляющая клапана (Ref #2)
2
Part #12204-MEW-P00
Gasket, cyl hd (Ref #3)
3
Part #12251-MEW-921
Изолятор (Ref #4)
4
Part #16210-MEW-920
Band b, insulator (Ref #5)
5
Part #16218-MAT-000
Nut, square (5mm) (Ref #6)
6
Part #16222-MV4-300
S/plg (cpr8ea-9) (Ref #7)
7
Part #31916-KRM-841
Pulser assy., cam (Ref #8)
8
Part #36140-MCH-003
Bolt (5x32) (Ref #9)
9
Part #90005-MM4-000
Болт (Ref #10)
10
Part #90006-MM5-640
Гайка (Ref #11)
11
Part #94050-10000
Гайка (Ref #11)
11
Part #94050-10000
Гайка (Ref #11)
11
Part #94050-10000
Гайка (Ref #11)
11
Part #94050-10000
Шайба (Ref #12)
12
Part #90410-HC4-000
Шайба (Ref #12)
12
Part #90410-HC4-000
Шайба (Ref #12)
12
Part #90410-HC4-000
Шайба (Ref #12)
12
Part #90410-HC4-000
Прокладка (Ref #13)
13
Part #91303-397-000
Прокладка (Ref #14)
14
Part #91309-PX4-003
BOLT (Ref #15)
15
Part #92900-08022-0E
Dowel pin (Ref #17)
17
Part #94301-14200
Dowel pin (Ref #17)
17
Part #94301-14200
Dowel pin (Ref #17)
17
Part #94301-14200
Dowel pin (Ref #17)
17
Part #94301-14200
BOLT (Ref #18)
18
Part #95701-060-160-0
BOLT (Ref #18)
18
Part #95701-060-160-0
BOLT (Ref #18)
18
Part #95701-060-160-0
BOLT (Ref #18)
18
Part #95701-060-160-0
BOLT (Ref #19)
19
Part #95701-080-500-0
Bolt, flange, 8x70 (Ref #20)
20
Part #95701-0807000
Bolt, flange, 8x70 (Ref #20)
20
Part #95701-0807000
Bolt, flange, 8x70 (Ref #20)
20
Part #95701-0807000
Bolt, flange, 8x70 (Ref #20)
20
Part #95701-0807000
