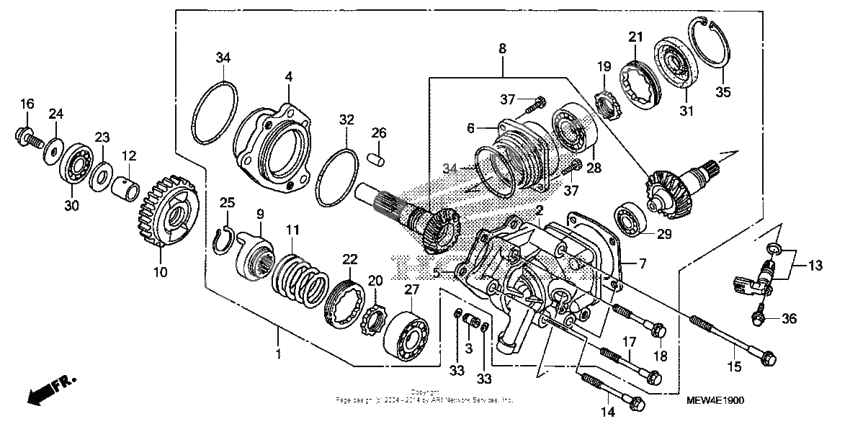

Side gear case
Side gear case
Case, side gear (Ref #1)
1
Part #21100-MEW-920
Case, side gear (Ref #2)
2
Part #21200-MEW-920
Ресивер (Ref #3)
3
Part #21215-MEW-920
HOLDER (Ref #4)
4
Part #21281-MEW-920
Shim (0.70) (Ref #5)
5
Part #21317-MEG-000
Shim (0.60) (Ref #5)
5
Part #21315-MEG-000
Shim (0.55) (Ref #5)
5
Part #21314-MEG-000
Shim (0.50) (Ref #5)
5
Part #21313-MEG-000
Shim (0.40) (Ref #5)
5
Part #21311-MEG-000
Shim (0.45) (Ref #5)
5
Part #21312-MEG-000
Shim (0.35) (Ref #5)
5
Part #21310-MEG-000
Shim (0.30) (Ref #5)
5
Part #21309-MEG-000
Shim (0.75) (Ref #5)
5
Part #21318-MEG-000
Shim (0.65) (Ref #5)
5
Part #21316-MEG-000
HOLDER (Ref #6)
6
Part #21371-MS9-000
Shim (0.60) (Ref #7)
7
Part #21385-MB0-770
Shim (0.55) (Ref #7)
7
Part #21384-MB0-770
Shim (0.50) (Ref #7)
7
Part #21383-MB0-770
Shim (0.45) (Ref #7)
7
Part #21382-MB0-770
Shim (0.20) (Ref #7)
7
Part #21377-MB0-770
Shim (0.40) (Ref #7)
7
Part #21381-MB0-770
Shim (0.35) (Ref #7)
7
Part #21380-MB0-770
Shim (0.30) (Ref #7)
7
Part #21379-MB0-770
Shim (0.25) (Ref #7)
7
Part #21378-MB0-770
Комплект торсионного вала (Ref #8)
8
Part #23200-MEW-920
Lifter, damper (Ref #9)
9
Part #23721-ME9-000
Шестерня (Ref #10)
10
Part #23726-MEW-920
Spring, damper (Ref #11)
11
Part #23732-MEW-920
Collar (20x24x19.8) (Ref #12)
12
Part #23733-MS9-000
Sensor assy., speed (Ref #13)
13
Part #37700-MEW-921
Bolt, ubs (8x65) (Ref #14)
14
Part #90029-MBL-610
Bolt, ubs (8x110) (Ref #15)
15
Part #90030-MBL-610
Bolt, special (10mm) (Ref #16)
16
Part #90037-ME9-000
Bolt, ubs (8x60) (Ref #17)
17
Part #90063-MB0-003
Bolt, ubs (8x45) (Ref #18)
18
Part #90065-HA8-680
Nut, lock, 30mm (Ref #19)
19
Part #90241-MB0-000
Nut, lock (30mm) (Ref #20)
20
Part #90241-MEW-920
Nut, lock, 64mm (Ref #21)
21
Part #90242-MB0-000
Nut, lock (64mm) (Ref #22)
22
Part #90244-MCH-000
Шайба (Ref #23)
23
Part #90401-MEW-920
Washer, 10mm (Ref #24)
24
Part #90409-952-000
Circlip (28mm) (Ref #25)
25
Part #90602-463-000
Установочный штифт (Ref #26)
26
Part #90701-MG8-000
Bearing (5206) (Ref #27)
27
Part #91007-MCH-003
Bearing (5206) (Ref #28)
28
Part #91012-MG7-003
Bearing, ball (6303) (Ref #29)
29
Part #91011-MB0-003
Bearing (6204) (Ref #30)
30
Part #91102-GE1-711
Oil seal (25x66x8.5) (Ref #31)
31
Part #91205-MG7-003
Прокладка (Ref #32)
32
Part #91301-MS9-003
Прокладка (Ref #33)
33
Part #91313-MA6-005
Прокладка (Ref #33)
33
Part #91313-MA6-005
Прокладка (Ref #33)
33
Part #91313-MA6-005
Прокладка (Ref #33)
33
Part #91313-MA6-005
Прокладка (Ref #34)
34
Part #91314-MG7-003
Прокладка (Ref #34)
34
Part #91314-MG7-003
Прокладка (Ref #34)
34
Part #91314-MG7-003
Прокладка (Ref #34)
34
Part #91314-MG7-003
Circlip (65mm) (Ref #35)
35
Part #9452065120
BOLT (Ref #36)
36
Part #95701-060-160-0
Bolt, socket (8x22) (Ref #37)
37
Part #96700-0802217
Bolt, socket (8x22) (Ref #37)
37
Part #96700-0802217
Bolt, socket (8x22) (Ref #37)
37
Part #96700-0802217
Bolt, socket (8x22) (Ref #37)
37
Part #96700-0802217
