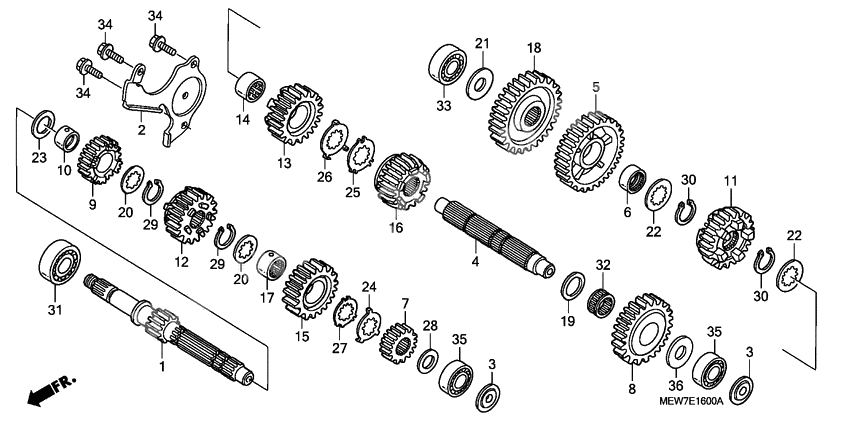

Трансмиссия
Трансмиссия
Mainshaft (14t) (Ref #1)
1
Part #23210-MEW-920
PLATE (Ref #2)
2
Part #23212-MS6-920
Маслоотражатель (Ref #3)
3
Part #23219-MF5-000
Маслоотражатель (Ref #3)
3
Part #23219-MF5-000
Маслоотражатель (Ref #3)
3
Part #23219-MF5-000
Маслоотражатель (Ref #3)
3
Part #23219-MF5-000
Countershaft (Ref #4)
4
Part #23220-MEW-920
Шестерня (Ref #5)
5
Part #23421-MEW-920
Colr, spline (28x10) (Ref #6)
6
Part #23422-MV1-000
Шестерня (Ref #7)
7
Part #23431-MEW-920
Шестерня (Ref #8)
8
Part #23441-MEW-920
Шестерня (Ref #9)
9
Part #23451-MEW-920
Втулка (Ref #10)
10
Part #23452-KCY-670
Шестерня (Ref #11)
11
Part #23461-MEW-920
Шестерня (Ref #12)
12
Part #23471-MEW-920
Шестерня (Ref #13)
13
Part #23481-MEW-920
Collar (28x13.5) (Ref #14)
14
Part #23482-MR7-000
Шестерня (Ref #15)
15
Part #23491-MEW-920
Шестерня (Ref #16)
16
Part #23501-MEW-920
Collar (25x28x13) (Ref #17)
17
Part #23512-MV9-670
Шестерня (Ref #18)
18
Part #23725-MEW-920
Шайба (Ref #19)
19
Part #90402-MEW-920
Шайба (Ref #20)
20
Part #90451-KY2-000
Шайба (Ref #20)
20
Part #90451-KY2-000
Шайба (Ref #20)
20
Part #90451-KY2-000
Шайба (Ref #20)
20
Part #90451-KY2-000
Washer a, thrust, 20mm (Ref #21)
21
Part #90451-704-000
Шайба (Ref #22)
22
Part #90452-MR7-000
Шайба (Ref #22)
22
Part #90452-MR7-000
Шайба (Ref #22)
22
Part #90452-MR7-000
Шайба (Ref #22)
22
Part #90452-MR7-000
Washer, thrust, 25mm (Ref #23)
23
Part #90456-MA6-000
Washer, lock (25mm) (Ref #24)
24
Part #90462-MR7-000
Шайба (Ref #25)
25
Part #90463-MCJ-000
Washer, lock (28mm) (Ref #26)
26
Part #90464-MCJ-000
Шайба (Ref #27)
27
Part #90465-MR7-000
Шайба (Ref #28)
28
Part #90554-MEL-000
Circlip (25mm) (Ref #29)
29
Part #90601-107-000
Circlip (25mm) (Ref #29)
29
Part #90601-107-000
Circlip (25mm) (Ref #29)
29
Part #90601-107-000
Circlip (25mm) (Ref #29)
29
Part #90601-107-000
Circlip (28mm) (Ref #30)
30
Part #90603-MN4-000
Circlip (28mm) (Ref #30)
30
Part #90603-MN4-000
Circlip (28mm) (Ref #30)
30
Part #90603-MN4-000
Circlip (28mm) (Ref #30)
30
Part #90603-MN4-000
Bearing (63/22) (Ref #31)
31
Part #91002-KY4-901
Bearing (24x28x10) (Ref #32)
32
Part #91026-MEL-003
Bearing (6204) (Ref #33)
33
Part #91102-GE1-711
Bearing, radial ball, 6204 (Ref #35)
35
Part #96100-6204000
Bearing, radial ball, 6204 (Ref #35)
35
Part #96100-6204000
Bearing, radial ball, 6204 (Ref #35)
35
Part #96100-6204000
Bearing, radial ball, 6204 (Ref #35)
35
Part #96100-6204000
