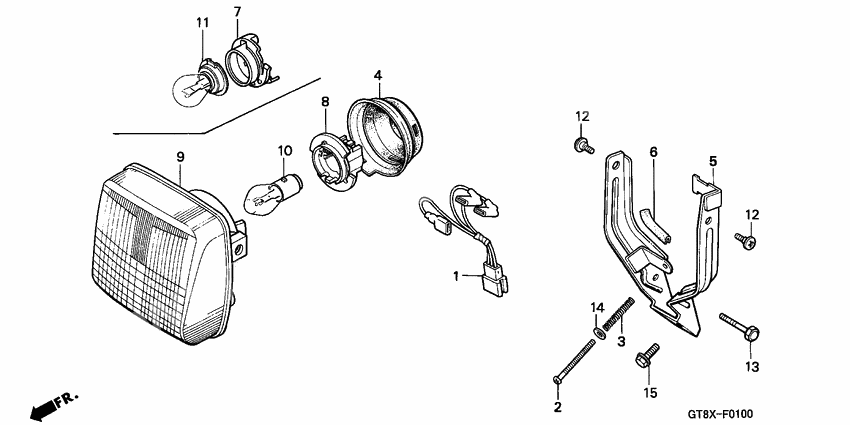

Phare
Phare
Sub cord,headligh (Ref #1)
1
Part #32102-GT8-680
Screw,beam adjust (Ref #2)
2
Part #33103-GT8-680
Spring,beam adjus (Ref #3)
3
Part #33107-GT8-680
Boot,headlight so (Ref #4)
4
Part #33108-GT8-681
Stay comp,head li (Ref #5)
5
Part #33121-GT8-600
Rubber,protector (Ref #6)
6
Part #33123-GT8-600
Socket headlight (Ref #8)
8
Part #33125-GT8-681
Unit head light (Ref #9)
9
Part #33130-GT8-V90
Bulb,headlight (Ref #10)
10
Part #34901-GC2-741
Screw,special,6x1 (Ref #12)
12
Part #90381-GT8-000
Screw,special,6x1 (Ref #12)
12
Part #90381-GT8-000
Screw,special,6x1 (Ref #12)
12
Part #90381-GT8-000
Screw,special,6x1 (Ref #12)
12
Part #90381-GT8-000
Bolt, cap (6x30) (Ref #13)
13
Part #92501-06030-0A
Шайба (Ref #14)
14
Part #9410103700
BOLT (Ref #15)
15
Part #95701-060-120-0
