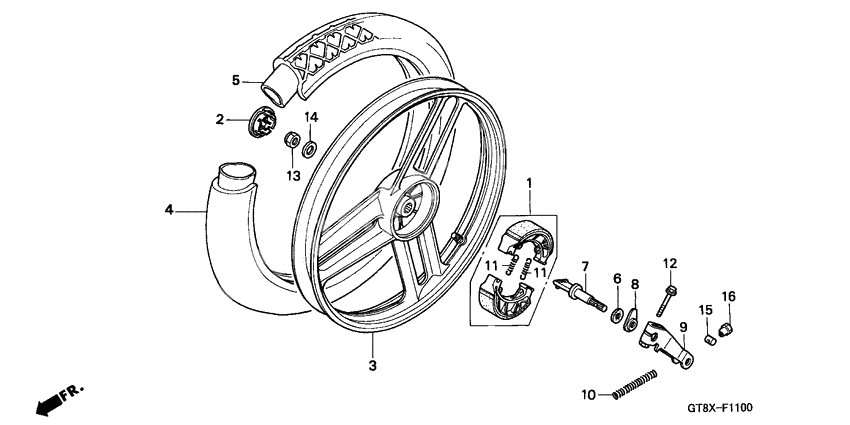

Rear wheel complete assy
Rear wheel complete assy
Shoe kit, brake (Ref #1)
1
Part #06450-178-932
Cap,rr.wheel (Ref #2)
2
Part #42120-GT8-690
Wheel comp*nh35m* (Ref #3)
3
Part #42601-GT8-691ZA
Tire(michelin) (Ref #4)
4
Part #42711-GT8-601
Tube(michelin) (Ref #5)
5
Part #42712-GT8-601
Seal, brake cam (Ref #6)
6
Part #43134-196-000
Cam,rr.brake (Ref #7)
7
Part #43141-GT8-601
Indicator,rr brk (Ref #8)
8
Part #43145-GT8-600
Arm comp.,rr.brak (Ref #9)
9
Part #43410-GT8-601
Spring, rr. (Ref #10)
10
Part #43472-KG8-000
Spring, brake shoe (Ref #11)
11
Part #45133-028-000
Spring, brake shoe (Ref #11)
11
Part #45133-028-000
Spring, brake shoe (Ref #11)
11
Part #45133-028-000
Spring, brake shoe (Ref #11)
11
Part #45133-028-000
Bolt, flange, 5x25 (Ref #12)
12
Part #90112-187-010
Nut, u, 14mm (Ref #13)
13
Part #90305-197-013
Шайба (Ref #14)
14
Part #90501-GAH-000
Joint a (Ref #15)
15
Part #95015-31001
Nut a, brake rod adjusting (Ref #16)
16
Part #9501541000
