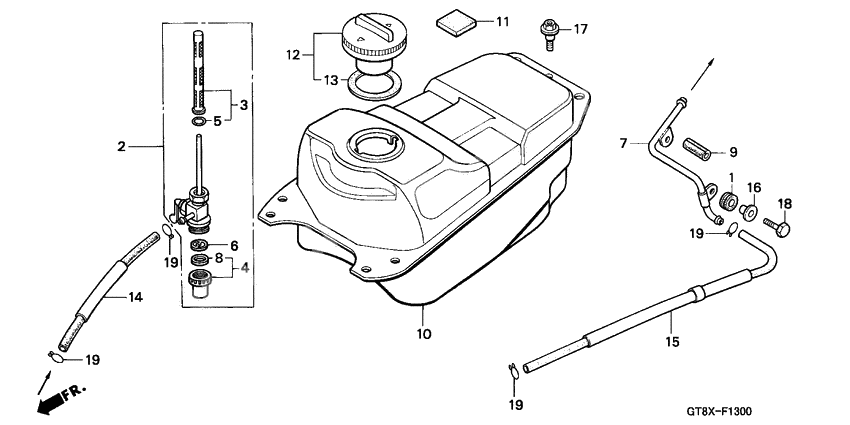

Tank fuel
Tank fuel
GROMMET (Ref #1)
1
Part #11347-371-300
Кран топливный (Ref #2)
2
Part #16950-GT8-B00
Screen set,fuel s (Ref #3)
3
Part #16952-GT8-B00
Cap set,fuel stra (Ref #4)
4
Part #16953-GT8-B00
Прокладка (Ref #5)
5
Part #16954-GT8-600
Screen,fuel strai (Ref #6)
6
Part #16955-GT8-B00
Pipe,fuel joint (Ref #7)
7
Part #16955-GT8-600
Packing,fuel (Ref #8)
8
Part #16956-GT8-B00
Rubber,fuel joint (Ref #9)
9
Part #16956-GT8-600
Tank comp.,fuel (Ref #10)
10
Part #17500-GT8-600
RUBBER,FUEL TANK (Ref #11)
11
Part #17505-GT8-600
Cap comp.,fuel fi (Ref #12)
12
Part #17620-GS7-671
Прокладка (Ref #13)
13
Part #17632-383-831
Tube comp,fuel a (Ref #14)
14
Part #17681-GT8-600
Tube comp,fuel b (Ref #15)
15
Part #17682-GT8-600
Шайба (Ref #16)
16
Part #61107-KK6-000
Bolt,special,6mm (Ref #17)
17
Part #90111-GT8-600
Bolt, hex., 6x10 (Ref #18)
18
Part #92101-06010-0A
