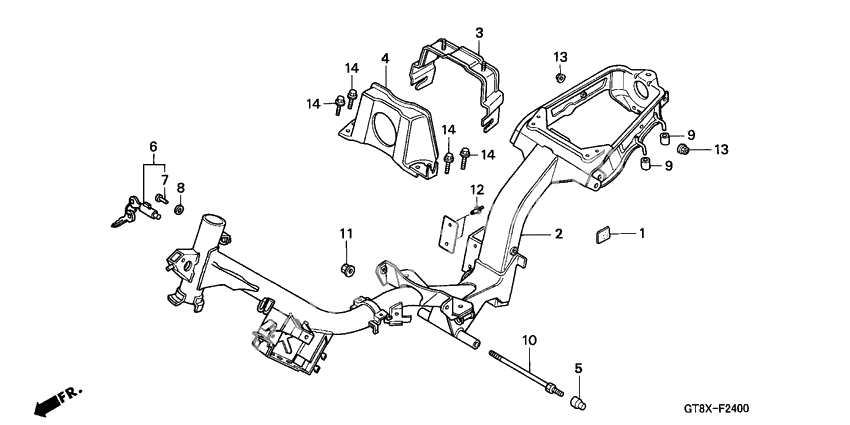

Frame body
Frame body
Seat,cable (Ref #1)
1
Part #43455-GT8-B00
Body comp,fr*nh1* (Ref #2)
2
Part #50100-GT8-S40ZA
Guard,fuel tank (Ref #3)
3
Part #50140-GT8-600
Braket,box rear (Ref #4)
4
Part #50151-GT8-600
Cover,engine hang (Ref #5)
5
Part #50201-GT8-600
Lock key,steering (Ref #6)
6
Part #53600-GY1-610
Rivet (4.1mm) (Ref #7)
7
Part #53603-051-000
Washer 4.5mm (Ref #8)
8
Part #53604-KEB-620
Cap,hook (Ref #9)
9
Part #81201-GT8-600
Cap,hook (Ref #9)
9
Part #81201-GT8-600
Cap,hook (Ref #9)
9
Part #81201-GT8-600
Cap,hook (Ref #9)
9
Part #81201-GT8-600
Bolt hex,10x187 (Ref #10)
10
Part #90102-GT8-600
Nut, u, 10mm (Ref #11)
11
Part #90304-GE8-003
Гайка (Ref #13)
13
Part #94050-06000
Гайка (Ref #13)
13
Part #94050-06000
Гайка (Ref #13)
13
Part #94050-06000
Гайка (Ref #13)
13
Part #94050-06000
