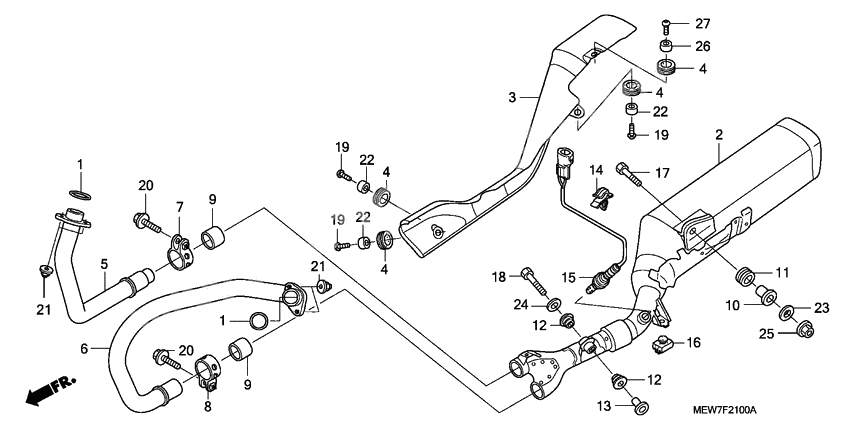

Exhaust muffler
Exhaust muffler
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Muffler comp. (Ref #2)
2
Part #18300-MEW-920
Крышка глушителя (Ref #3)
3
Part #18315-MEW-920
Pipe comp (Ref #5)
5
Part #18320-MEW-920
Pipe, rr, ex, (Ref #6)
6
Part #18370-MEW-920
Band, r. ex. pipe (Ref #7)
7
Part #18373-ML0-000
Band, l. ex. pipe (Ref #8)
8
Part #18374-ML0-000
Gasket, muffler (Ref #9)
9
Part #18391-MN5-650
Gasket, muffler (Ref #9)
9
Part #18391-MN5-650
Gasket, muffler (Ref #9)
9
Part #18391-MN5-650
Gasket, muffler (Ref #9)
9
Part #18391-MN5-650
COLLAR (Ref #10)
10
Part #18396-MEW-920
Rub, muffler setting (Ref #11)
11
Part #18397-MEW-920
Mount rubber,muff (Ref #12)
12
Part #18421-MBL-D00
Mount rubber,muff (Ref #12)
12
Part #18421-MBL-D00
Mount rubber,muff (Ref #12)
12
Part #18421-MBL-D00
Mount rubber,muff (Ref #12)
12
Part #18421-MBL-D00
Collar,muff.mount (Ref #13)
13
Part #18422-MBL-610
Clip, wire harness (Ref #14)
14
Part #32171-GJ1-003
Датчик (Ref #15)
15
Part #36531-MEW-921
RUBBER (Ref #16)
16
Part #50505-MCS-760
Болт ,8X35 (Ref #17)
17
Part #90112-MW3-600
Bolt, socket (8x45) (Ref #18)
18
Part #90116-KY1-000
Болт (Ref #20)
20
Part #90161-ML7-000
Болт (Ref #20)
20
Part #90161-ML7-000
Болт (Ref #20)
20
Part #90161-ML7-000
Болт (Ref #20)
20
Part #90161-ML7-000
Гайка (Ref #21)
21
Part #90208-438-000
Гайка (Ref #21)
21
Part #90208-438-000
Гайка (Ref #21)
21
Part #90208-438-000
Гайка (Ref #21)
21
Part #90208-438-000
Washer, 8mm (Ref #23)
23
Part #90501-819-000
Washer, 8.5x26 (Ref #24)
24
Part #90504-MA6-000
Гайка (Ref #25)
25
Part #94050-08000
Collar b, taillight (Ref #26)
26
Part #33713-GC2-000
Bolt, special (6x16) (Ref #27)
27
Part #90116-MAS-E00
