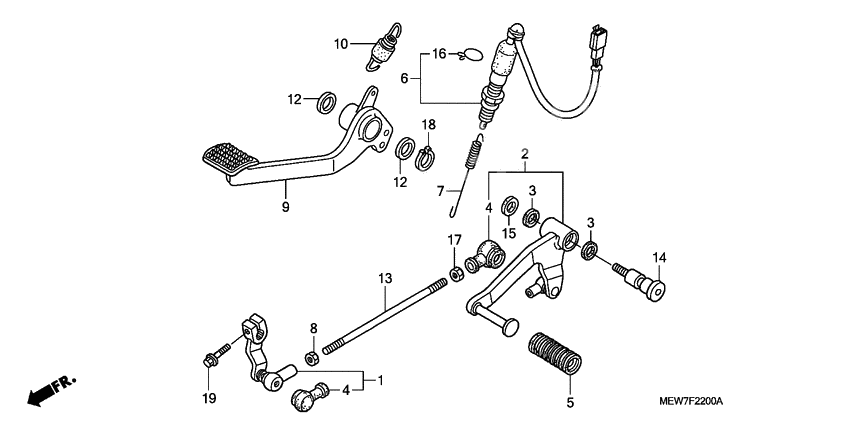

Brake pedal assy
Brake pedal assy
Arm, gearshift (Ref #1)
1
Part #24702-MEW-920
Pedal, gearshift (Ref #2)
2
Part #24705-MBL-D60
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Rubber, gearshift (Ref #5)
5
Part #24781-449-000
Switch assy (Ref #6)
6
Part #35350-MEW-920
Spring, stop switch (Ref #7)
7
Part #35357-KN6-960
Гайка (Ref #8)
8
Part #45423-KA4-700
Pedal (Ref #9)
9
Part #46500-MEW-920
Spring assy., rr. (Ref #10)
10
Part #46511-KZ4-J00
PLATE (Ref #12)
12
Part #50715-KE8-000
PLATE (Ref #12)
12
Part #50715-KE8-000
PLATE (Ref #12)
12
Part #50715-KE8-000
PLATE (Ref #12)
12
Part #50715-KE8-000
Bolt, tie rod (Ref #13)
13
Part #90065-MEW-920
Bolt, change pivot (Ref #14)
14
Part #90115-KAF-000
Шайба (Ref #15)
15
Part #90526-GB0-930
Clip, switch cover (Ref #16)
16
Part #90601-KAF-003
Гайка (Ref #17)
17
Part #94001-062-000-S
Circlip (19mm) (Ref #18)
18
Part #94511-19000
Болт (Ref #19)
19
Part #96300-0602200
