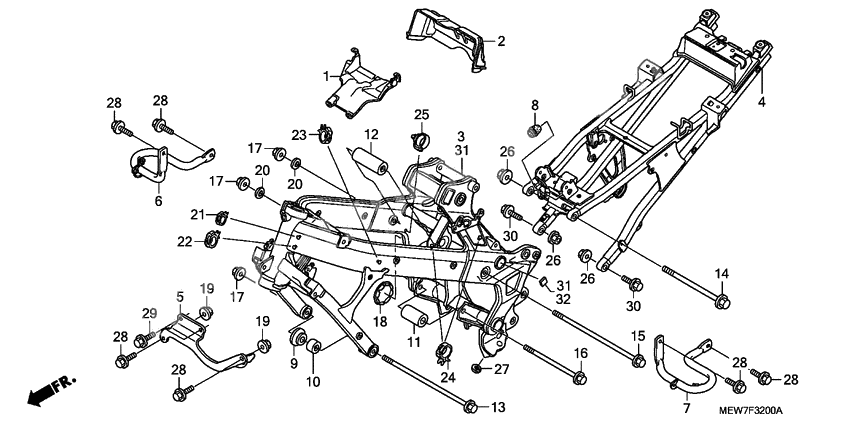

Frame body
Frame body
Plate, fr (Ref #1)
1
Part #19130-MEW-920
Guard, rr, heat (Ref #2)
2
Part #19131-MEW-920
Body comp (Ref #3)
3
Part #50100-MEW-920
Rail, seat (Ref #4)
4
Part #50200-MEW-920
Plate, fr, cross (Ref #5)
5
Part #50260-MEW-920
Guard, r, engine (Ref #6)
6
Part #50270-MEW-920
Guard,l eng (Ref #7)
7
Part #50280-MEW-920
Rubber, stopper (Ref #8)
8
Part #50353-HA7-670
Collar r. fr.eng.han (Ref #9)
9
Part #50353-MBL-610
Collar a, l, eng hgr (Ref #10)
10
Part #50355-MEW-920
Collar d, eng hgr (Ref #11)
11
Part #50358-MEW-920
Collar c, l, (24x65) (Ref #12)
12
Part #50359-MEW-920
Bolt (10x270) (Ref #13)
13
Part #90102-MN8-000
Bolt, flg (12x205) (Ref #14)
14
Part #90110-MEW-920
Bolt, flg (10x265) (Ref #15)
15
Part #90112-MEW-920
Bolt, flg (10x185) (Ref #16)
16
Part #90118-MEW-920
Cap,lock nut (Ref #18)
18
Part #90302-MZ8-G20
Nut, flange (self-lock) (m8x1.25) (Ref #19)
19
Part #90309-428-731
Nut, flange (self-lock) (m8x1.25) (Ref #19)
19
Part #90309-428-731
Nut, flange (self-lock) (m8x1.25) (Ref #19)
19
Part #90309-428-731
Nut, flange (self-lock) (m8x1.25) (Ref #19)
19
Part #90309-428-731
Шайба (Ref #20)
20
Part #90405-MEW-920
Шайба (Ref #20)
20
Part #90405-MEW-920
Шайба (Ref #20)
20
Part #90405-MEW-920
Шайба (Ref #20)
20
Part #90405-MEW-920
Clip, cable, 15mm (Ref #21)
21
Part #90690-GHB-651
Clip, cable, 20mm (Ref #22)
22
Part #90690-GHB-661
Clip, cable, 25mm (Ref #23)
23
Part #90690-GHB-671
Clip, cable (30mm) (Ref #24)
24
Part #90690-GHB-681
CLIP (Ref #25)
25
Part #91558-SD5-003
E-RING (Ref #27)
27
Part #94540-06018
Болт (Ref #29)
29
Part #96300-0805500
Болт (Ref #30)
30
Part #96400-120-700-0
Болт (Ref #30)
30
Part #96400-120-700-0
Болт (Ref #30)
30
Part #96400-120-700-0
Болт (Ref #30)
30
Part #96400-120-700-0
