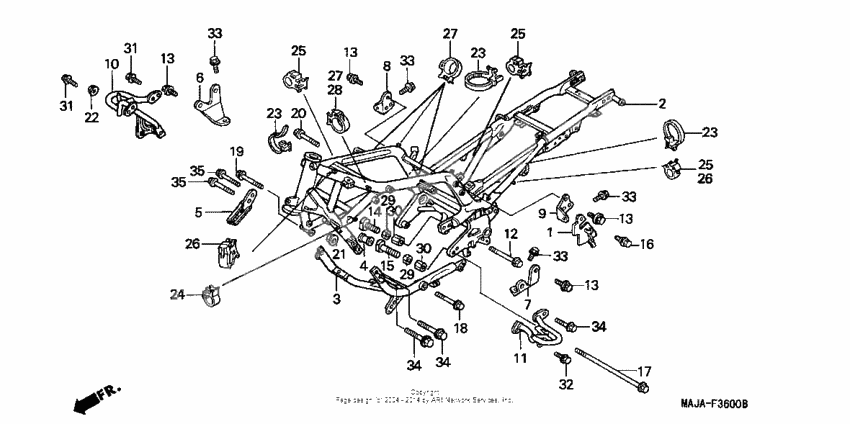

Frame
Frame
Guard, l. rr. heat (Ref #1)
1
Part #19180-MT3-000
Frame (Ref #2)
2
Part #50100-MAJ-A20
Frame, sub (Ref #3)
3
Part #50150-MT3-000
Collar, eng hgr (Ref #4)
4
Part #50220-ML4-000
Stay, r. middle cowl (Ref #5)
5
Part #50238-MT3-000
Brkt, r. fr. eng hgr (Ref #6)
6
Part #50310-MAJ-G40
Brkt, l. fr. eng hgr (Ref #7)
7
Part #50311-MAJ-G40
Brkt, r. rr. eng hgr (Ref #8)
8
Part #50312-MAJ-G20
Brkt, l. rr. eng hgr (Ref #9)
9
Part #50313-MAJ-G20
Guard, r. engine (Ref #10)
10
Part #64206-MAJ-G00
Guard, l. engine (Ref #11)
11
Part #64216-MT3-000
Bolt, flg (10x110) (Ref #12)
12
Part #90102-MT3-000
Bolt b, eng hgr adj (Ref #14)
14
Part #90108-MAJ-G20
Bolt a, eng hgr adj (Ref #15)
15
Part #90110-MAJ-G20
Болт (Ref #16)
16
Part #90116-ME9-000
Bolt, flg (12x348) (Ref #17)
17
Part #90126-MT3-010
Болт (Ref #18)
18
Part #90152-MT3-000
Болт (Ref #19)
19
Part #90153-MT3-000
Болт (Ref #20)
20
Part #90154-MT3-000
Nut, u, 10mm (Ref #21)
21
Part #90304-GE8-003
Nut, flange (12mm) (Ref #22)
22
Part #90306-181-761
Clip, cable, 8mm (Ref #24)
24
Part #90690-GHB-631
Clip, cable, 15mm (Ref #26)
26
Part #90690-GHB-651
Clip, cable, 15mm (Ref #26)
26
Part #90690-GHB-651
Clip, cable, 15mm (Ref #26)
26
Part #90690-GHB-651
Clip, cable, 15mm (Ref #26)
26
Part #90690-GHB-651
Clip, cable, 20mm (Ref #27)
27
Part #90690-GHB-661
Clip, cable, 20mm (Ref #27)
27
Part #90690-GHB-661
Clip, cable, 20mm (Ref #27)
27
Part #90690-GHB-661
Clip, cable, 20mm (Ref #27)
27
Part #90690-GHB-661
Nut, hex. (18mm) (Ref #29)
29
Part #94001-182000S
Nut, hex. (18mm) (Ref #29)
29
Part #94001-182000S
Nut, hex. (18mm) (Ref #29)
29
Part #94001-182000S
Nut, hex. (18mm) (Ref #29)
29
Part #94001-182000S
Nut, hex. (18mm) (Ref #30)
30
Part #94002-180000S
Nut, hex. (18mm) (Ref #30)
30
Part #94002-180000S
Nut, hex. (18mm) (Ref #30)
30
Part #94002-180000S
Nut, hex. (18mm) (Ref #30)
30
Part #94002-180000S
BOLT (Ref #31)
31
Part #95701-080-160-7
BOLT (Ref #31)
31
Part #95701-080-160-7
BOLT (Ref #31)
31
Part #95701-080-160-7
BOLT (Ref #31)
31
Part #95701-080-160-7
Bolt, flange, 10x20 (Ref #32)
32
Part #95701-1002007
Болт (Ref #35)
35
Part #95801-1006507
Болт (Ref #35)
35
Part #95801-1006507
Болт (Ref #35)
35
Part #95801-1006507
Болт (Ref #35)
35
Part #95801-1006507
