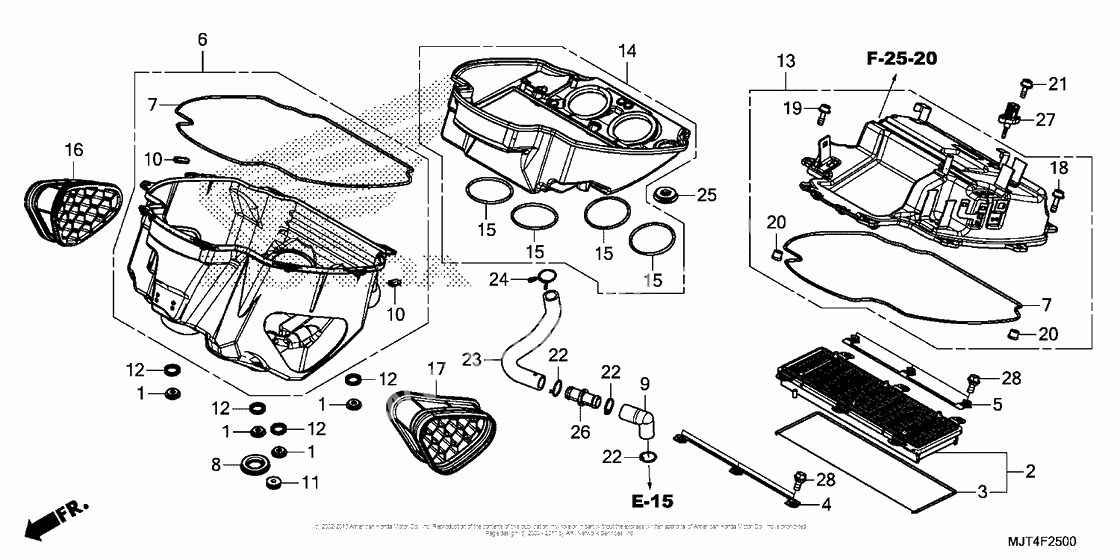

Воздушный фильтр
Воздушный фильтр
Collar, air cleaner (Ref #1)
1
Part #16484-MJT-E00
Element, air cleaner (Ref #2)
2
Part #17210-MJT-E00
Seal, element (Ref #3)
3
Part #17211-MJT-E00
PLATE, FR. (Ref #4)
4
Part #17212-MJT-E00
Plate, rr. (Ref #5)
5
Part #17213-MJT-E00
Housing, air cleaner (Ref #6)
6
Part #17220-MJT-E00
Seal, a/clnr hsg (Ref #7)
7
Part #17221-MJT-E00
SEAL, BREATHER JOINT (Ref #8)
8
Part #17223-MJT-E01
TUBE (Ref #9)
9
Part #17224-MJT-E00
Rubber, protector (Ref #10)
10
Part #17225-MJT-E00
Rubber, air cleaner (Ref #11)
11
Part #17228-MJT-E01
RUBBER (Ref #12)
12
Part #17229-MJT-E01
Cover, air cleaner (Ref #13)
13
Part #17230-MJT-E00
HOUSING (Ref #14)
14
Part #17240-MJT-E00
Seal (Ref #15)
15
Part #17241-MJT-E00
JOINT, R. DUCT (Ref #16)
16
Part #17255-MJT-E00
JOINT, L. DUCT (Ref #17)
17
Part #17265-MJT-E00
Bolt, socket (5x16) (Ref #18)
18
Part #17292-MJT-E00
Bolt, socket (5x14) (Ref #19)
19
Part #17293-MJT-E00
Collar (5mm) (Ref #20)
20
Part #17295-MJT-E00
Bolt, socket (5x12) (Ref #21)
21
Part #17296-MJT-E00
Clip b, tube (Ref #22)
22
Part #17366-MJ0-000
TUBE (Ref #23)
23
Part #17551-MJT-E00
Clip, breather tube (Ref #24)
24
Part #17554-MB0-000
GROMMET (Ref #25)
25
Part #17727-MJT-E00
JOINT (Ref #26)
26
Part #19060-KVZ-630
Сенсор температуры воздуха (Ref #27)
27
Part #37880-KWW-C01
BOLT (Ref #28)
28
Part #90508-GC8-000
