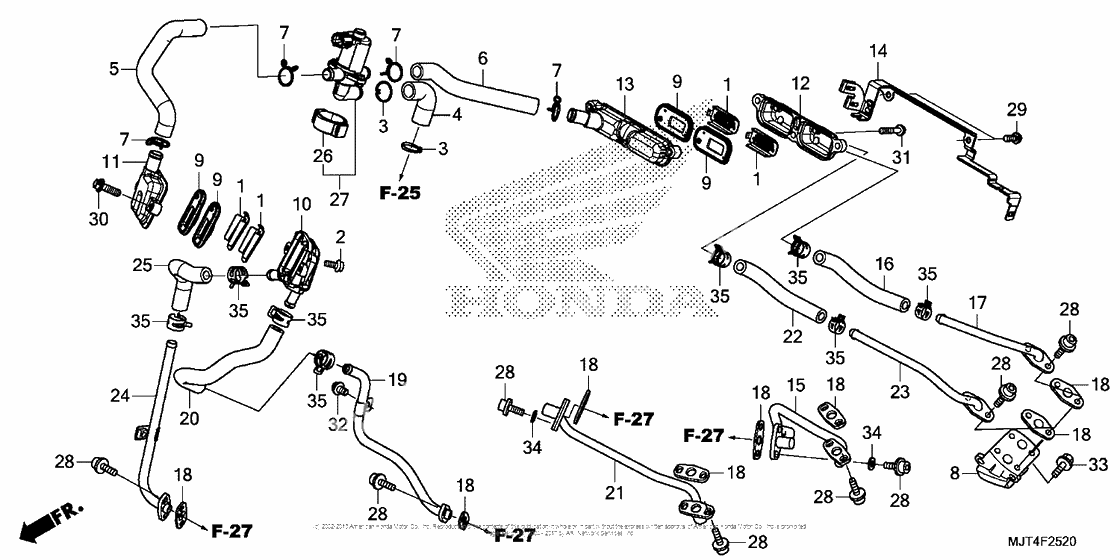

Система вентиляция картера
Система вентиляция картера
Plate, port (Ref #1)
1
Part #12341-MAT-750
Bolt, socket (4x10) (Ref #2)
2
Part #17294-MJT-E00
Clip b, tube (Ref #3)
3
Part #17366-MJ0-000
TUBE (Ref #4)
4
Part #17461-MJT-E00
Tube, fr. (Ref #5)
5
Part #17462-MJT-E00
Tube, rr. (Ref #6)
6
Part #17464-MJT-E00
CLIP (Ref #7)
7
Part #17724-102-700
COLLECTOR, THERMAL (Ref #8)
8
Part #18555-MJT-E00
Клапан (Ref #9)
9
Part #18601-MCH-003
CASE, FR. REED VALVE (Ref #10)
10
Part #18610-MJT-E00
CVR, FR. REED VALVE (Ref #11)
11
Part #18612-MJT-E00
CASE, RR. REED VALVE (Ref #12)
12
Part #18620-MJT-E00
CVR, RR. REED VALVE (Ref #13)
13
Part #18622-MJT-E00
STAY, RR. REED VALVE (Ref #14)
14
Part #18629-MJT-E00
PIPE (#1-A) (Ref #15)
15
Part #18640-MJT-E00
TUBE (#1) (Ref #16)
16
Part #18641-MJT-E00
PIPE (#1-B) (Ref #17)
17
Part #18645-MJT-E00
Прокладка (Ref #18)
18
Part #18645-MT4-730
PIPE (#2) (Ref #19)
19
Part #18650-MJT-E00
TUBE (#2) (Ref #20)
20
Part #18651-MJT-E00
PIPE (#3-A) (Ref #21)
21
Part #18660-MJT-E00
TUBE (#3) (Ref #22)
22
Part #18661-MJT-E00
PIPE (#3-B) (Ref #23)
23
Part #18665-MJT-E00
PIPE (#4) (Ref #24)
24
Part #18670-MJT-E00
TUBE (#4) (Ref #25)
25
Part #18671-MJT-E00
Suspension (Ref #26)
26
Part #36172-MFJ-D00
Valve assy. (Ref #27)
27
Part #36450-MJT-E00
BOLT (6X13) (Ref #28)
28
Part #90020-MJT-E00
Bolt (6x18) (Ref #29)
29
Part #90034-MJT-E00
Bolt (6x22) (Ref #30)
30
Part #90036-MJT-E00
Bolt (6x32) (Ref #31)
31
Part #90039-MJT-E00
BOLT, FLANGE (6X10) (Ref #32)
32
Part #90122-MJT-E00
Bolt, flange (6x18) (Ref #33)
33
Part #90126-MJT-E00
Шайба (Ref #34)
34
Part #90488-425-000
Clip, fuel hose (Ref #35)
35
Part #90678-MN5-000
