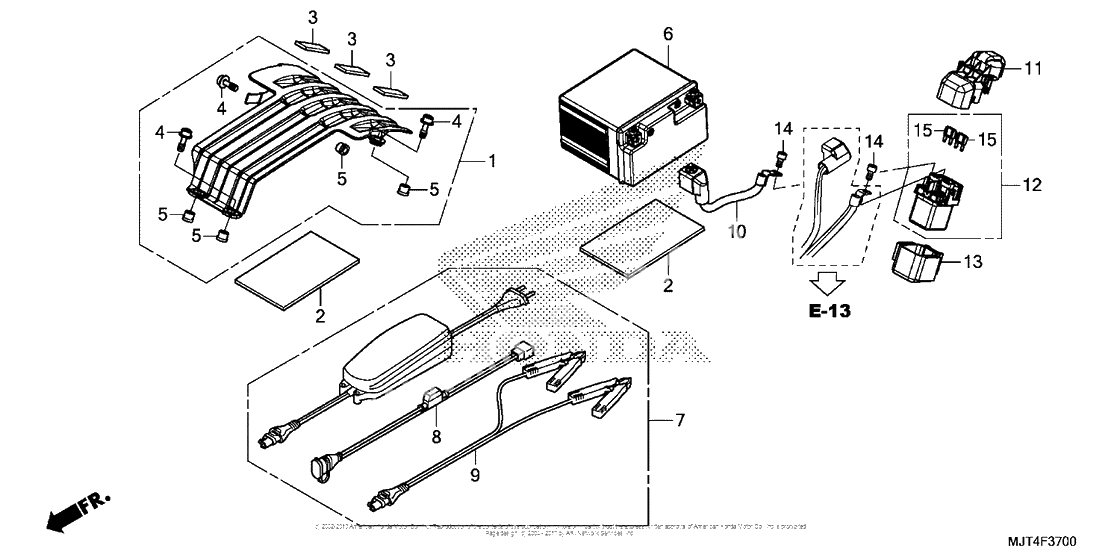

Аккумулятор
Аккумулятор
Cover assy., battery (Ref #1)
1
Part #17250-MJT-E00
Cushion, battery (Ref #2)
2
Part #17251-MJT-E00
CUSHION (Ref #3)
3
Part #17252-MJT-E00
Bolt, socket (5x14) (Ref #4)
4
Part #17293-MJT-E00
Collar (5mm) (Ref #5)
5
Part #17295-MJT-E00
Аккумулятор (Ref #6)
6
Part #31500-KY4-905AH
CHARGER, BATTERY (Ref #7)
7
Part #31520-MJT-A01
Cable, battery (Ref #8)
8
Part #31522-MJT-E01
CABLE, BOOSTER (Ref #9)
9
Part #31523-MJT-E01
Cable (Ref #10)
10
Part #32401-MJT-E00
COVER (Ref #11)
11
Part #32406-MJT-E01
Sw, starter magnetic (Ref #12)
12
Part #35850-MFL-D00
RUBBER (Ref #13)
13
Part #35856-MBG-003
Bolt, socket (5x9) (Ref #14)
14
Part #90111-MR5-000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #15)
15
Part #98200-43000
