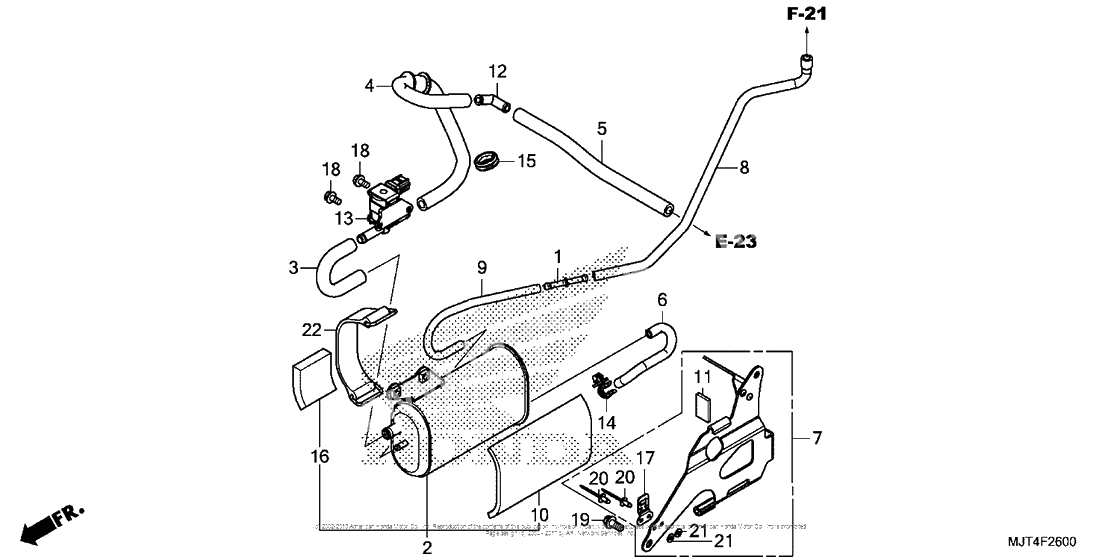

Система вентиляции бака
Система вентиляции бака
Joint, fuel tube (Ref #1)
1
Part #16958-GJ6-000
Canister (Ref #2)
2
Part #17410-MJT-A01
Tube a, purge (Ref #3)
3
Part #17411-MJT-A00
Tube b, purge (Ref #4)
4
Part #17412-MJT-A00
Tube c, purge (Ref #5)
5
Part #17413-MJT-A00
Tube, canister drain (Ref #6)
6
Part #17415-MJT-A00
Stay, canister (Ref #7)
7
Part #17440-MJT-A00
Tube a, charge (Ref #8)
8
Part #17544-MJT-A00
Tube b, charge (Ref #9)
9
Part #17545-MJT-A00
Cushion, fuel tank (Ref #10)
10
Part #17558-MEE-300
RUBBER (Ref #11)
11
Part #19036-GS2-600
Joint, tube (Ref #12)
12
Part #19103-MB9-000
Valve, pur cont sol (Ref #13)
13
Part #36162-KZL-931
CLAMP (Ref #14)
14
Part #41936-P6R-003
Grommet, oil tube (Ref #15)
15
Part #55204-GJ2-000
Mat, duct cover (Ref #16)
16
Part #64352-MFL-000
Stay, connector (Ref #17)
17
Part #64514-MJT-E00
Bolt, flange, 5x10 (Ref #18)
18
Part #90002-892-000
Bolt, flange (6x14) (Ref #19)
19
Part #90124-MJT-E00
RIVET, POP (3.2X6.4) (Ref #20)
20
Part #90851-MJT-E00
Шайба (Ref #21)
21
Part #9410103700
Band b2, battery (Ref #22)
22
Part #9501213001
