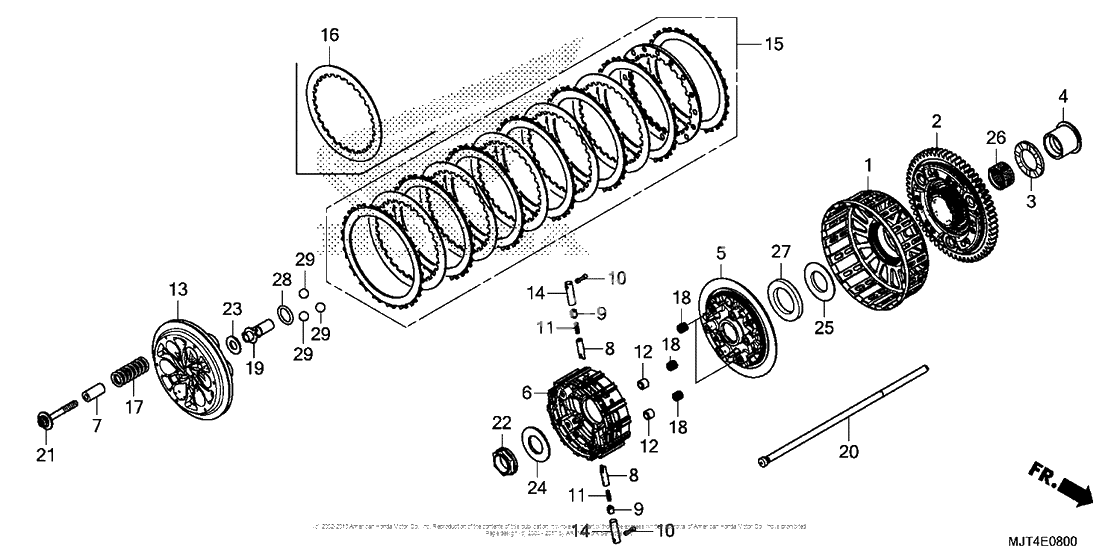

Сцепление
Сцепление
Clutch outer (Ref #1)
1
Part #22101-MJT-E00
Gear (58t) (Ref #2)
2
Part #22110-MJT-E00
Collar b (Ref #3)
3
Part #22117-MJT-E00
COLLAR (Ref #4)
4
Part #22119-MJT-E00
Center a, clutch (Ref #5)
5
Part #22121-MJT-E00
Center b, clutch (Ref #6)
6
Part #22122-MJT-E00
Boss, clutch center (Ref #7)
7
Part #22123-MJT-E00
PLUNGER, CLUTCH (Ref #8)
8
Part #22125-MJT-E00
STOPPER, PLUNGER (Ref #9)
9
Part #22126-MJT-E00
Pin, stopper (Ref #10)
10
Part #22127-MJT-E00
SPRING, PLUNGER (Ref #11)
11
Part #22128-MJT-E00
COLLAR, SUB-SPRING (Ref #12)
12
Part #22129-MJT-E00
Plate, clu press (Ref #13)
13
Part #22131-MJT-E00
Colr, clutch center (Ref #14)
14
Part #22141-MJT-E00
DISK SET (1.6MM) (Ref #15)
15
Part #22210-MJT-305
PLATE (2.0MM) (Ref #16)
16
Part #22317-MJT-E00
PLATE (1.9MM) (Ref #16)
16
Part #22316-MJT-E00
PLATE (1.8MM) (Ref #16)
16
Part #22315-MJT-E00
PLATE (1.7MM) (Ref #16)
16
Part #22314-MJT-E00
SPRING (233N) (Ref #17)
17
Part #22401-MJT-E00
SPRING, CLUTCH SUB (Ref #18)
18
Part #22402-MJT-E00
Piece, clutch lifter (Ref #19)
19
Part #22841-MJT-E00
Rod, lifter (Ref #20)
20
Part #22850-MJT-E00
Bolt (6x45) (Ref #21)
21
Part #90025-MJT-E00
NUT, FLANGE (24MM) (Ref #22)
22
Part #90208-MJT-E00
WASHER (11.7X23X2) (Ref #23)
23
Part #90407-MJT-E00
WASHER B (24.1X46X3) (Ref #24)
24
Part #90411-MJT-E00
WASHER (28MM) (Ref #25)
25
Part #90497-MJT-E00
BEARING (34MM) (Ref #26)
26
Part #91021-MJT-E01
OIL SEAL (35X54X5.5) (Ref #27)
27
Part #91223-MJT-E01
O-RING (10.6X1.3) (Ref #28)
28
Part #91312-MJT-E00
Ball (Ref #29)
29
Part #96211-07000
