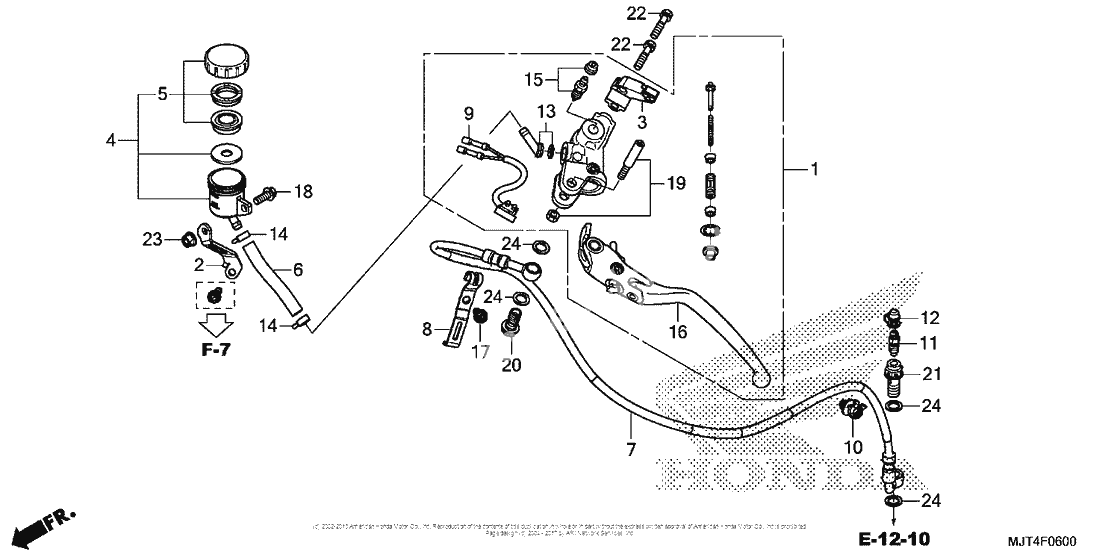

Главный цилиндр сцепления
Главный цилиндр сцепления
M/cyl assy., clutch (Ref #1)
1
Part #22880-MJT-E01
STAY (Ref #2)
2
Part #22885-MJT-E00
HOLDER (Ref #3)
3
Part #22887-MJT-E01
CUP ASSY. (Ref #4)
4
Part #22890-MJT-E01
CAP ASSY., OIL CUP (Ref #5)
5
Part #22891-MJT-E01
HOSE (Ref #6)
6
Part #22895-MJT-E00
Hose, clutch (Ref #7)
7
Part #22900-MJT-E01
Guide, clutch hose (Ref #8)
8
Part #22912-MJT-E00
Switch assy., clutch (Ref #9)
9
Part #35330-MJT-E01
CLAMP (Ref #10)
10
Part #41936-P6R-003
Болт (Ref #11)
11
Part #43352-568-003
CAP (Ref #12)
12
Part #43353-461-771
CONNECTOR ASSY. (Ref #13)
13
Part #45505-MJT-E01
CLAMP (Ref #14)
14
Part #45513-MJT-E00
SCREW ASSY., BLEEDER (Ref #15)
15
Part #45552-MJT-E01
Lever set, clutch (Ref #16)
16
Part #53180-MJT-E01
BOLT, FLANGE (6X12) (Ref #17)
17
Part #90123-MJT-E00
Bolt, flange (6x16) (Ref #18)
18
Part #90125-MJT-E00
BOLT SET (Ref #19)
19
Part #90134-MJT-E01
BOLT, OIL (10X20) (Ref #20)
20
Part #90141-MJT-E00
BOLT, OIL BLEEDER (Ref #21)
21
Part #90146-MJT-E00
Bolt (6x25) (Ref #22)
22
Part #90173-MJT-E00
Nut, u, 6mm (Ref #23)
23
Part #90301-473-003
Шайба (Ref #24)
24
Part #90545-300-000
