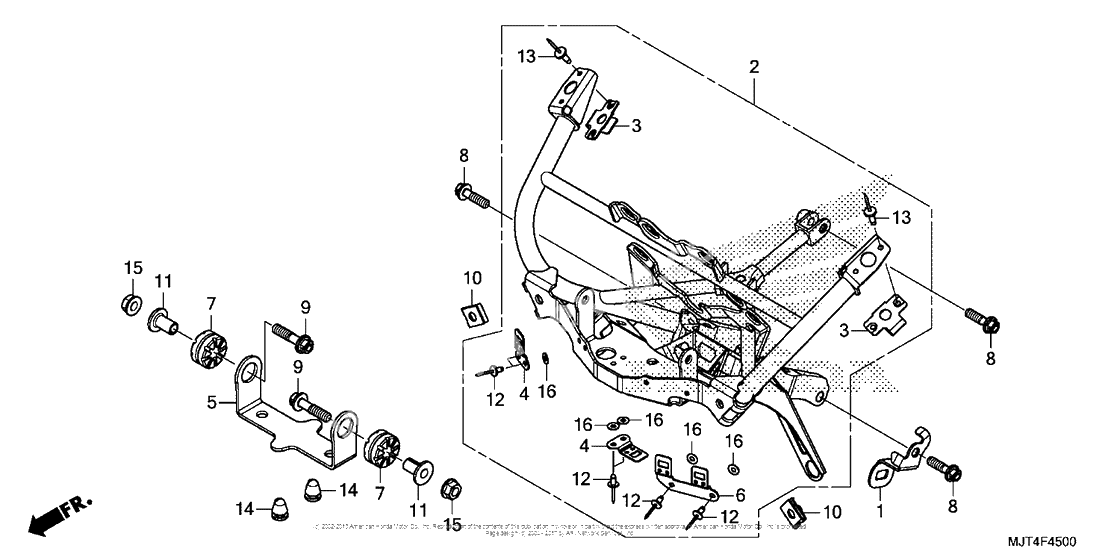

Cowl stay
Cowl stay
Stay, harness clip (Ref #1)
1
Part #32131-MJT-E00
Stay, cowl (upper) (Ref #2)
2
Part #64501-MJT-E00
PLATE, RIVET (Ref #3)
3
Part #64508-MJT-E00
Stay, connector (Ref #4)
4
Part #64514-MJT-E00
BRKT, YAW & G SENSOR (Ref #5)
5
Part #64521-MJT-E00
STAY B, CONNECTOR (Ref #6)
6
Part #64522-MJT-E00
Rubber b (Ref #7)
7
Part #77208-KW7-900
BOLT, FLANGE (6X22) (Ref #8)
8
Part #90128-MJT-E00
BOLT, FLANGE (6X25) (Ref #9)
9
Part #90129-MJT-E00
Nut, clip (6mm) (Ref #10)
10
Part #90201-KPR-901
Collar (16x6.2x) (Ref #11)
11
Part #90502-MCE-000
RIVET, POP (3.2X6.4) (Ref #12)
12
Part #90851-MJT-E00
RIVET (3.2X8) (Ref #13)
13
Part #90852-MJT-E00
Plug, cone type (Ref #14)
14
Part #90899-422-610
ナット (Ref #15)
15
Part #94050-06070
Шайба (Ref #16)
16
Part #94101-03800
