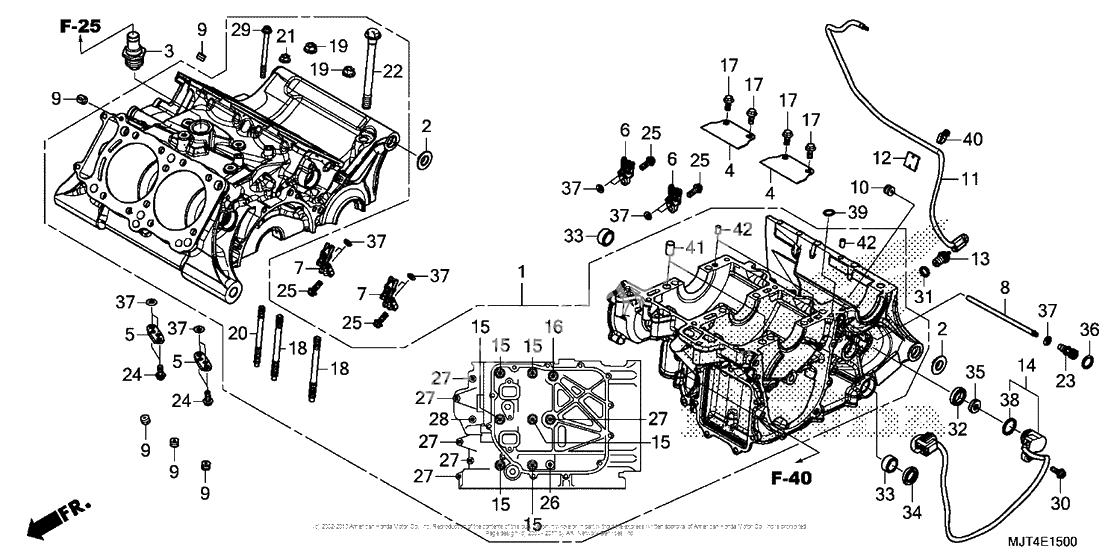

Картер двигателя
Картер двигателя
CRANKCASE SET (Ref #1)
1
Part #11000-MJT-E00
Collar d, eng hgr (Ref #2)
2
Part #11104-MJT-E00
Joint, breather (Ref #3)
3
Part #11106-MJT-E00
Plate, oil separate (Ref #4)
4
Part #11203-MJT-E00
PLUG (Ref #5)
5
Part #15520-MJT-E00
JET, FR. EX. PISTON (Ref #6)
6
Part #15530-MJT-E00
JET, RR. EX. PISTON (Ref #7)
7
Part #15540-MJT-E00
Pipe (Ref #8)
8
Part #15550-MJT-E00
ORIFICE (1MM) (Ref #9)
9
Part #15564-MJT-E00
ORIFICE (2MM) (Ref #10)
10
Part #15571-MJT-E00
SUB-WIRE, NEUTRAL (Ref #11)
11
Part #32101-MJT-E00
BASE, MOUNT (Ref #12)
12
Part #32114-MJT-E00
Переключатель нейтральный (Ref #13)
13
Part #35600-MFJ-D01
SENSOR (350DEGREE) (Ref #14)
14
Part #38800-MJT-E01
BOLT, FLANGE (9X93) (Ref #15)
15
Part #90001-MJT-E00
BOLT, FLANGE (9X114) (Ref #16)
16
Part #90003-MJT-E00
Болт (Ref #17)
17
Part #90004-GHB-610
BOLT, STUD (8X96.5) (Ref #18)
18
Part #90004-MJT-E00
Nut, flange (8mm) (Ref #19)
19
Part #90005-MJT-E00
BOLT, STUD (7X90) (Ref #20)
20
Part #90006-MJT-E00
Nut, flange (7mm) (Ref #21)
21
Part #90007-MJT-E00
Bolt, flg (10x110) (Ref #22)
22
Part #90008-MJT-E00
BOLT (Ref #23)
23
Part #90027-MJT-E00
Bolt (6x14) (Ref #24)
24
Part #90032-MJT-E00
Bolt (6x16) (Ref #25)
25
Part #90033-MJT-E00
BOLT (6X36) (Ref #26)
26
Part #90041-MJT-E00
Bolt (6x40) (Ref #27)
27
Part #90042-MJT-E00
Bolt (6x45) (Ref #28)
28
Part #90044-MJT-E00
Bolt (6x70) (Ref #29)
29
Part #90050-MJT-E00
Bolt (5x16) (Ref #30)
30
Part #90093-MJT-E00
Washer, neutral (Ref #31)
31
Part #90443-MJ6-000
BEARING (6802C3) (Ref #32)
32
Part #91001-MJT-E01
BEARING (15X21X10) (Ref #33)
33
Part #91026-MJT-E01
Oil seal, 15x24x5 (Ref #34)
34
Part #91204-GK8-003
САЛЬНИК ДВИГАТЕЛЯ МОТОЦИКЛА (Ref #35)
35
Part #91220-MG8-003
Прокладка (Ref #36)
36
Part #91306-MG3-000
O-RING (2.8X1.2) (Ref #37)
37
Part #91308-MJT-E00
Прокладка (Ref #38)
38
Part #91310-MGE-D01
O-RING, CRANKCASE (Ref #39)
39
Part #91317-MJT-E00
BAND (2.4X92) (Ref #40)
40
Part #91641-MJT-E00
Pin b, dowel, 10x16 (Ref #41)
41
Part #9430210160
Dowel pin (Ref #42)
42
Part #94303-06100
