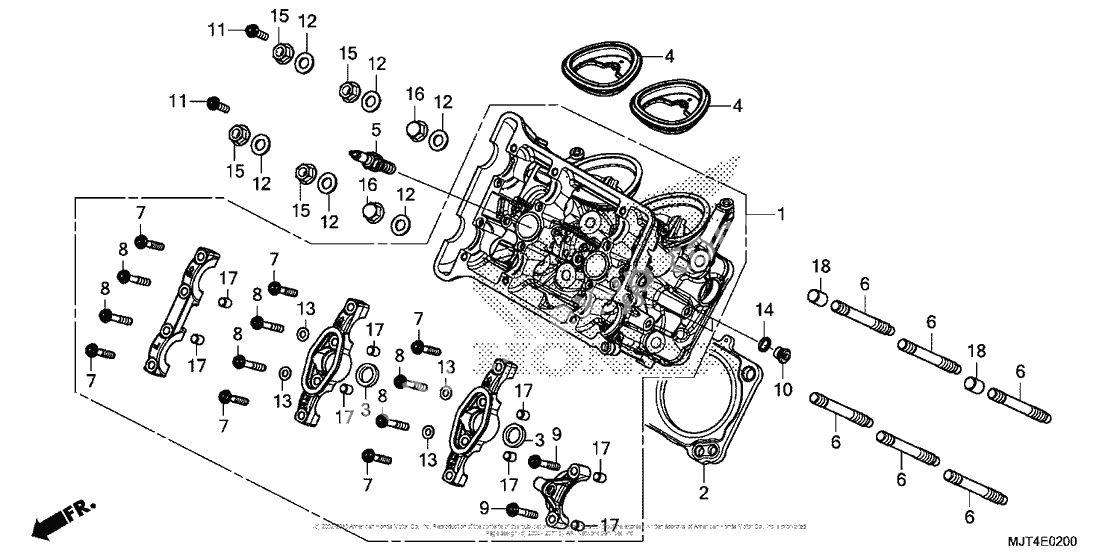

Cylinder head (fr.)
Cylinder head (fr.)
Cylinder head, fr. (Ref #1)
1
Part #12010-MJT-E01
Gasket, fr. cyl hd (Ref #2)
2
Part #12251-MJT-E01
GSKT, PLUG HOLE TUBE (Ref #3)
3
Part #12398-MJT-E00
INSULATOR (Ref #4)
4
Part #16210-MJT-E00
S/PLG (R0486A-9) (Ref #5)
5
Part #31910-MJT-E01
BOLT, STUD (10X97) (Ref #6)
6
Part #90013-MJT-E00
BOLT (6X31) (Ref #7)
7
Part #90021-MJT-E00
BOLT (6X37) (Ref #8)
8
Part #90022-MJT-E00
Bolt (6x35) (Ref #9)
9
Part #90040-MJT-E00
BOLT (10X8.5) (Ref #10)
10
Part #90062-MJT-E00
Bolt (6x22) (Ref #11)
11
Part #90076-MJT-E00
Шайба (Ref #12)
12
Part #90410-KR0-000
Шайба (Ref #13)
13
Part #90463-ML7-000
WASHER (10X13.5X2.3) (Ref #14)
14
Part #90476-MJT-E00
Nut, flange (10mm) (Ref #15)
15
Part #90730-MJT-E00
Nut (10mm) (Ref #16)
16
Part #90740-MJT-E00
Dowel pin (Ref #17)
17
Part #94301-08100
Штырь штифт (Ref #18)
18
Part #94301-12160
