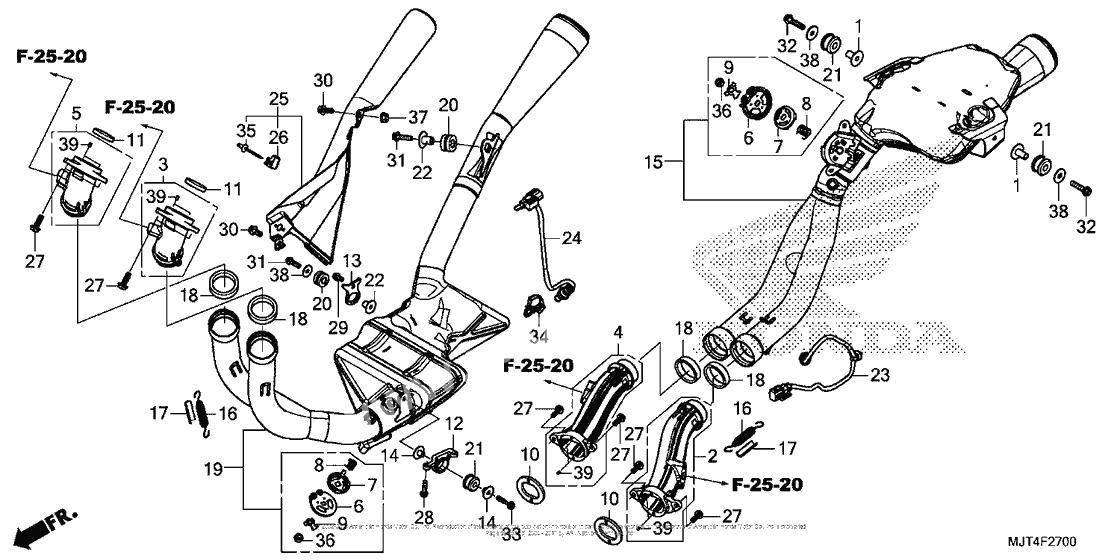

Выхлопная система
Выхлопная система
Collar, air cleaner (Ref #1)
1
Part #17246-439-000
COLLAR, EX. (#1) (Ref #2)
2
Part #18110-MJT-A00
COLLAR, EX. (#2) (Ref #3)
3
Part #18120-MJT-A00
COLLAR, EX. (#3) (Ref #4)
4
Part #18130-MJT-A00
COLLAR, EX. (#4) (Ref #5)
5
Part #18140-MJT-A00
Guide, valve cable (Ref #6)
6
Part #18180-MFJ-A40
Stopper, ex. valve (Ref #7)
7
Part #18185-MFJ-A40
Spring, return (Ref #8)
8
Part #18186-MEL-D20
Washer b, lock (Ref #9)
9
Part #18195-MFJ-D00
GASKET (#1,#3) (Ref #10)
10
Part #18291-MJT-E01
GASKET (#2,#4) (Ref #11)
11
Part #18292-MJT-E01
Stay, l. muffler (Ref #12)
12
Part #18302-MJT-E00
Stay, r. muffler (Ref #13)
13
Part #18303-MJT-E00
Collar, muff mt (Ref #14)
14
Part #18304-MJT-E00
Muffler, rr. ex. (Ref #15)
15
Part #18310-MJT-E00
Spring, ex. pipe (Ref #16)
16
Part #18336-MJT-E00
CVR, EX. PIPE SPRING (Ref #17)
17
Part #18337-MJT-E00
Gasket, muffler (Ref #18)
18
Part #18392-MJT-E01
Muffler, fr. ex. (Ref #19)
19
Part #18410-MJT-E00
RUBBER (Ref #20)
20
Part #18422-MJT-E00
Rubber, rr. muff mt (Ref #21)
21
Part #18424-MFJ-D00
COLLAR (Ref #22)
22
Part #19052-MAC-680
SENSOR (#1,#3) (Ref #23)
23
Part #36531-MJT-E01
SENSOR (#2,#4) (Ref #24)
24
Part #36532-MJT-E01
PROTR, HEAT *TCLEAR* (Ref #25)
25
Part #50630-MJT-E00ZA
PLATE, RIVET (Ref #26)
26
Part #64508-MJT-E00
Bolt, flange (6x18) (Ref #27)
27
Part #90010-MJT-E00
Bolt (6x22) (Ref #28)
28
Part #90036-MJT-E00
BOLT, FLANGE (6X12) (Ref #29)
29
Part #90123-MJT-E00
Bolt, flange (6x14) (Ref #30)
30
Part #90124-MJT-E00
BOLT, FLANGE (6X22) (Ref #31)
31
Part #90128-MJT-E00
Bolt, flange (6x28) (Ref #32)
32
Part #90130-MJT-E00
BOLT, FLANGE (6X30) (Ref #33)
33
Part #90131-MJT-E00
Clamp, harness (Ref #34)
34
Part #90652-MFG-D01
RIVET, POP (3.2X6.4) (Ref #35)
35
Part #90851-MJT-E00
Nut, hex., 6mm (Ref #36)
36
Part #94001-060200S
Гайка (Ref #37)
37
Part #94050-06000
Шайба (Ref #38)
38
Part #94103-06700
Dowel pin (Ref #39)
39
Part #94303-03050
