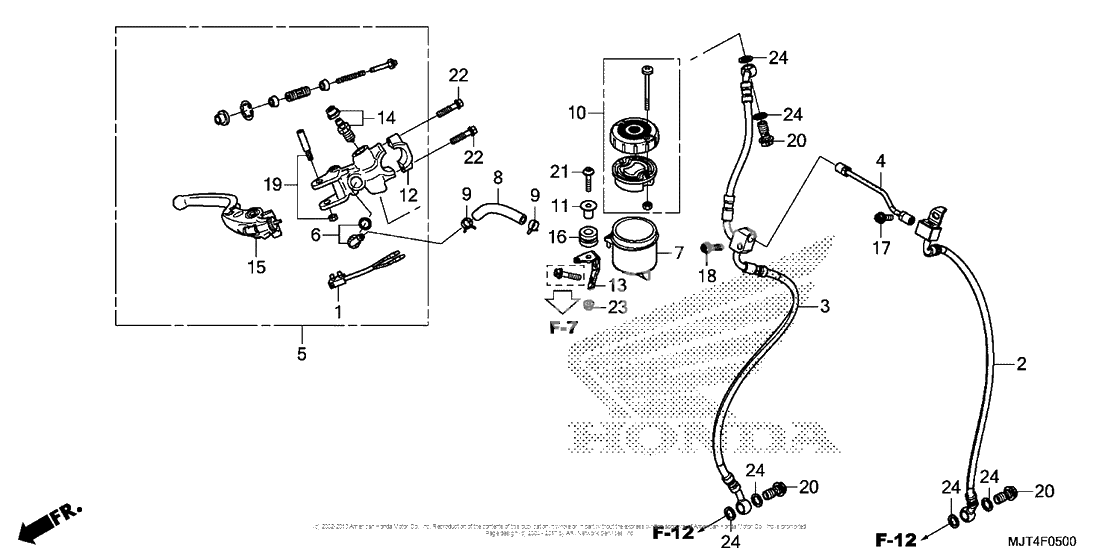

Передний тормозной цилиндр
Передний тормозной цилиндр
Switch, fr. stop (Ref #1)
1
Part #35340-MJT-E01
Hose, l. fr. brake (Ref #2)
2
Part #45125-MJT-E01
Hose, r. fr. brake (Ref #3)
3
Part #45126-MJT-E01
Pipe, fr. brake (Ref #4)
4
Part #45131-MJT-E00
Master cylinder, fr. (Ref #5)
5
Part #45500-MJT-E01
CONNECTOR ASSY. (Ref #6)
6
Part #45505-MJT-E01
Cup, oil (Ref #7)
7
Part #45511-MJT-E01
HOSE (Ref #8)
8
Part #45512-MJT-E00
CLAMP (Ref #9)
9
Part #45513-MJT-E00
CAP ASSY., OIL CUP (Ref #10)
10
Part #45515-MJT-E01
COLLAR (5.1X14) (Ref #11)
11
Part #45517-MJT-E00
Holder, fr. (Ref #12)
12
Part #45518-MJT-E01
Stay, fr. (Ref #13)
13
Part #45550-MJT-E00
SCREW ASSY., BLEEDER (Ref #14)
14
Part #45552-MJT-E01
LEVER SET, FR. BRAKE (Ref #15)
15
Part #53170-MJT-E01
RUBBER (Ref #16)
16
Part #80219-KCZ-000
Bolt, flange (6x18) (Ref #17)
17
Part #90126-MJT-E00
BOLT, FLANGE (6X25) (Ref #18)
18
Part #90129-MJT-E00
BOLT SET (Ref #19)
19
Part #90134-MJT-E01
BOLT, OIL (10X20) (Ref #20)
20
Part #90141-MJT-E00
Bolt, socket (5x25) (Ref #21)
21
Part #90157-MJT-E00
Bolt (6x25) (Ref #22)
22
Part #90173-MJT-E00
Nut, flange (5mm) (Ref #23)
23
Part #90301-MG8-000
Шайба (Ref #24)
24
Part #90545-300-000
