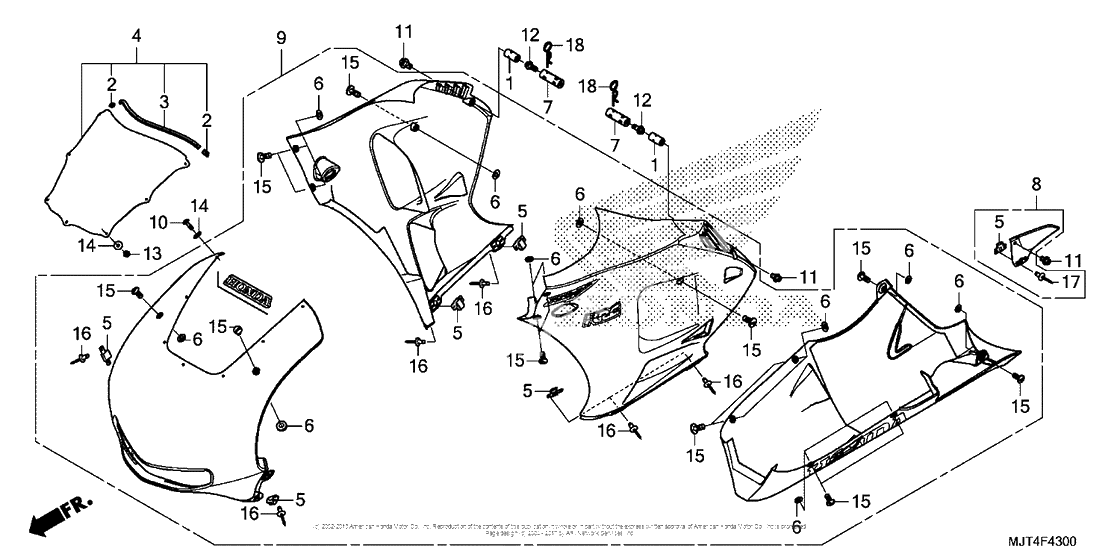

Front cowl
Front cowl
Nut, cowl stay (Ref #1)
1
Part #50803-MJT-E00
Clip, screen molding (Ref #2)
2
Part #64102-MJT-E00
Molding, windscreen (Ref #3)
3
Part #64105-MJT-E00
Windscreen assy. (Ref #4)
4
Part #64200-MJT-A00
PLATE, RIVET (Ref #5)
5
Part #64508-MJT-E00
Retainer (6mm) (Ref #6)
6
Part #64509-MJT-E00
COLLAR, COWL SIDE (Ref #7)
7
Part #64531-MJT-E00
STAY, L. *TCLEAR* (Ref #8)
8
Part #64580-MJT-E00ZA
Cowl, fr. (type1) (Ref #9)
9
Part #64600-MJT-305ZA
SCREW, TRUSS (3X10) (Ref #10)
10
Part #90120-MJT-E00
BOLT, FLANGE (6X10) (Ref #11)
11
Part #90122-MJT-E00
Bolt, flange (6x14) (Ref #12)
12
Part #90124-MJT-E00
Nut, u (3mm) (Ref #13)
13
Part #90325-MJT-E00
WASHER, THRUST (3MM) (Ref #14)
14
Part #90505-MJT-E01
STUD (6X10) (Ref #15)
15
Part #90651-MJT-E00
RIVET, POP (3.2X6.4) (Ref #16)
16
Part #90851-MJT-E00
RIVET (3.2X8) (Ref #17)
17
Part #90852-MJT-E00
Pin, lock (16mm) (Ref #18)
18
Part #9425216100
