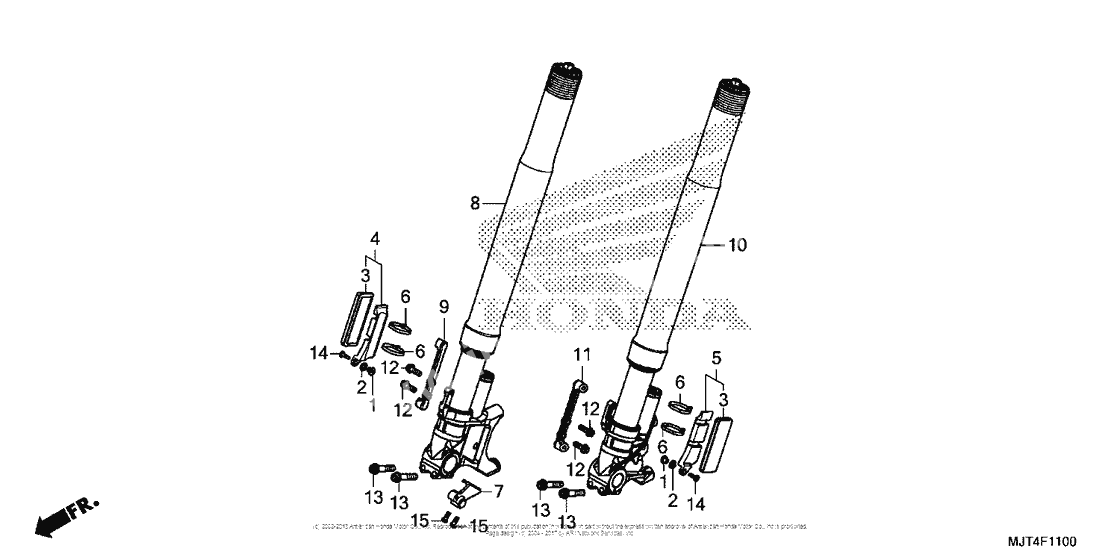

Вилка передней оси
Вилка передней оси
COLR, REFLECTOR STAY (Ref #1)
1
Part #33743-MJT-A00
WASHER (Ref #2)
2
Part #33744-MJT-A00
Reflector set, fr. (Ref #3)
3
Part #33745-MBA-670
STAY SET, R. FR. (Ref #4)
4
Part #33750-MJT-A00
STAY SET, L. FR. (Ref #5)
5
Part #33760-MJT-A00
Band (black 3.5x140) (Ref #6)
6
Part #35701-MG9-950
Stay, speed sensor (Ref #7)
7
Part #39207-MJT-E00
FORK, R. FR. (TTX25) (Ref #8)
8
Part #51400-MJT-E01
Stay, r. fender (Ref #9)
9
Part #51418-MJT-E00
FORK, L. FR. (TTX25) (Ref #10)
10
Part #51500-MJT-E01
Stay, l. fender (Ref #11)
11
Part #51518-MJT-E00
BOLT, FLANGE (6X20) (Ref #12)
12
Part #90127-MJT-E00
BOLT, FLANGE (8X40) (Ref #13)
13
Part #90136-MJT-E00
BOLT (4X14) (Ref #14)
14
Part #90168-MJT-A00
Screw-washer (4x10) (Ref #15)
15
Part #90171-MJT-E00
