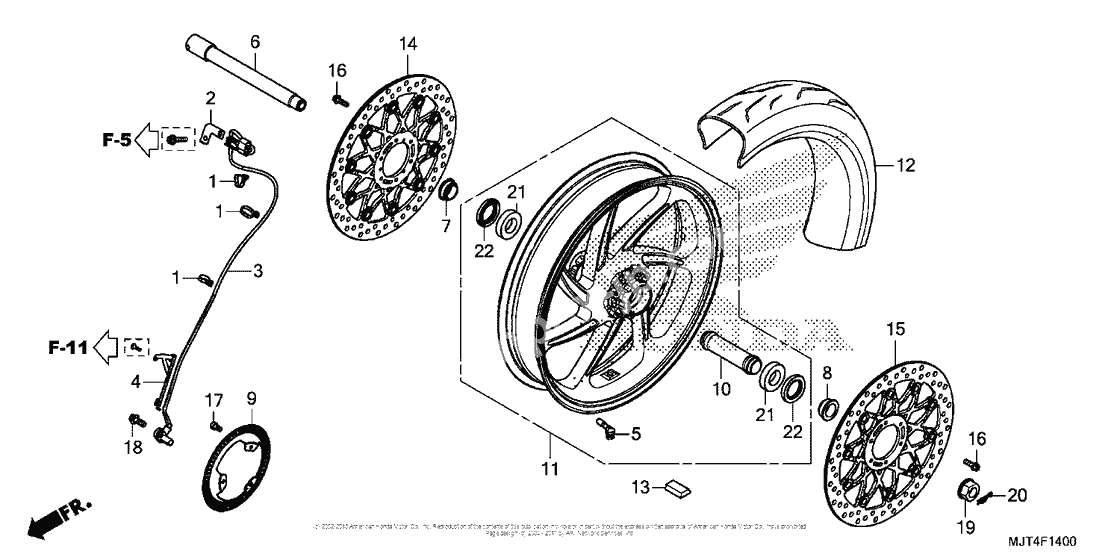

Передние колесо
Передние колесо
Band (black 3.5x140) (Ref #1)
1
Part #35701-MG9-950
Stay, connector (Ref #2)
2
Part #38514-MJT-E00
Sensor, fr. (Ref #3)
3
Part #38520-MJT-E01
CLAMP (Ref #4)
4
Part #38522-MJT-E00
Valve, rim (Ref #5)
5
Part #42753-MJT-E01
Axle, fr. wheel (Ref #6)
6
Part #44301-MJT-E01
Collar, r. fr. (Ref #7)
7
Part #44311-MJT-E00
Collar, l. fr. (Ref #8)
8
Part #44312-MJT-E00
Ring, fr. pulser (Ref #9)
9
Part #44515-MJT-E00
COLLAR, FR. (Ref #10)
10
Part #44620-MJT-E00
Wheel sub-assy., fr. (Ref #11)
11
Part #44650-MJT-E00
Tire, Fr. (120/70Zr17) (M/c 58W) (Bs) (Ref #12)
12
Part #44711-MJT-E01
Грузик (Ref #13)
13
Part #44721-SEA-N02
Грузик (Ref #13)
13
Part #44729-SEA-N02
Грузик (Ref #13)
13
Part #44728-SEA-N02
Грузик (Ref #13)
13
Part #44724-SEA-N02
Грузик (Ref #13)
13
Part #44727-SEA-N02
Грузик (Ref #13)
13
Part #44726-SEA-N02
Грузик (Ref #13)
13
Part #44723-SEA-N02
Грузик (Ref #13)
13
Part #44722-SEA-N02
Disk, r. fr. brake (Ref #14)
14
Part #45120-MJT-E01
Disk, l. fr. brake (Ref #15)
15
Part #45220-MJT-E01
BOLT, FR. (6X20) (Ref #16)
16
Part #90106-MJT-E00
Bolt, torx (5x10) (Ref #17)
17
Part #90131-KFK-630
Bolt, flange (6x16) (Ref #18)
18
Part #90137-MJT-E00
Nut, fr. axle (Ref #19)
19
Part #90305-MJT-E00
PIN, LOCK (16.5MM) (Ref #20)
20
Part #90751-MJT-E00
Bearing (60/28) (Ref #21)
21
Part #91053-MFR-671
Dust seal (34x52x7) (Ref #22)
22
Part #91252-MGE-003
