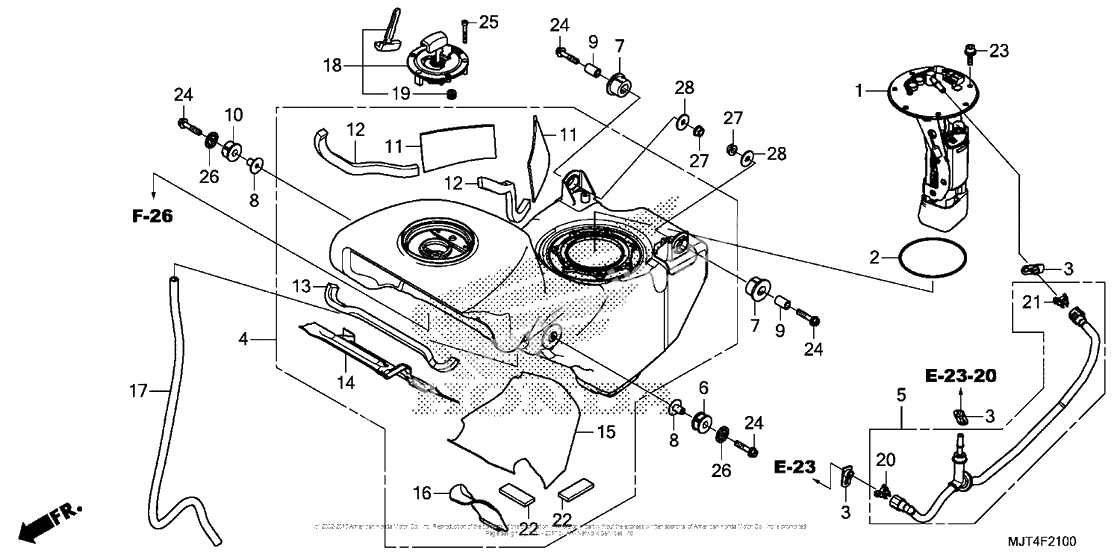

Fuel tank + fuel pump
Fuel tank + fuel pump
Pump assy., fuel (Ref #1)
1
Part #16700-MJT-E00
O-RING (5X102) (Ref #2)
2
Part #16712-MJT-E01
Damper, connector (Ref #3)
3
Part #16719-MEW-920
Tank set, fuel (Ref #4)
4
Part #17500-MJT-E00
Hose, fuel feed (Ref #5)
5
Part #17526-MJT-E01
Rubber, l. fr. (Ref #6)
6
Part #17533-MFL-000
Rubber, rr (Ref #7)
7
Part #17534-MFL-000
COLLAR, FR. (Ref #8)
8
Part #17535-MJT-E00
Collar, rr. (Ref #9)
9
Part #17537-MJT-E00
Rubber, r. fr. (Ref #10)
10
Part #17545-MFL-000
Cushion, fuel tank (Ref #11)
11
Part #17558-MEE-940
SEAL A, FUEL TANK (Ref #12)
12
Part #17571-MJT-E00
SEAL B, FUEL TANK (Ref #13)
13
Part #17572-MJT-E00
Guard a (Ref #14)
14
Part #17573-MJT-E00
Guard b (Ref #15)
15
Part #17574-MJT-E00
GUARD C (Ref #16)
16
Part #17575-MJT-E00
TUBE, DRAIN (Ref #17)
17
Part #17581-MJT-E00
Cap, fuel filler (Ref #18)
18
Part #17620-MJT-E01
Seal, breather (Ref #19)
19
Part #17621-MGP-D61
RETAINER (Ref #20)
20
Part #17711-MGE-003
RETAINER (Ref #21)
21
Part #17711-S0X-931
Rubber, rr. frame (Ref #22)
22
Part #80129-MEG-000
Bolt (6x12) (Ref #23)
23
Part #90031-MJT-E00
Bolt, flange (6x28) (Ref #24)
24
Part #90130-MJT-E00
Bolt, socket (4x30) (Ref #25)
25
Part #90142-MJT-E00
WASHER (6.5X27X1.2) (Ref #26)
26
Part #90507-MJT-E00
Гайка (Ref #27)
27
Part #94050-06000
Шайба (Ref #28)
28
Part #94103-06700
