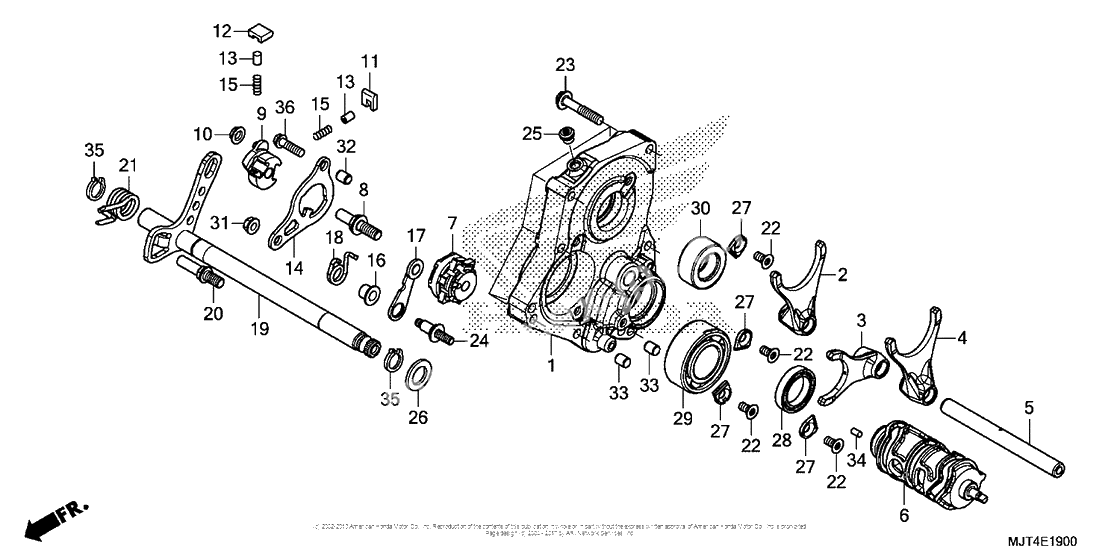

Копирный вал & Вилки & Вал переключения
Копирный вал & Вилки & Вал переключения
Holder, transmission (Ref #1)
1
Part #11130-MJT-E00
Fork, r. gearshift (Ref #2)
2
Part #24211-MJT-E00
FORK (Ref #3)
3
Part #24212-MJT-E00
Fork, l. gearshift (Ref #4)
4
Part #24213-MJT-E00
Shaft, shift fork (Ref #5)
5
Part #24265-MJT-E00
Drum, gearshift (Ref #6)
6
Part #24311-MJT-E00
Center, shift drum (Ref #7)
7
Part #24312-MJT-E00
Pin, shifter (Ref #8)
8
Part #24315-HA0-000
Shifter, drum (Ref #9)
9
Part #24321-MJT-E00
Collar, shifter (Ref #10)
10
Part #24322-MM4-000
Pawl a, ratchet (Ref #11)
11
Part #24324-KA3-711
Pawl b, ratchet (Ref #12)
12
Part #24325-KA3-711
Plunger, pawl (Ref #13)
13
Part #24326-KBH-901
Plate, change guide (Ref #14)
14
Part #24328-MJT-E00
Spring, pawl plunger (Ref #15)
15
Part #24329-KA3-740
COLR, SPRING STOPPER (Ref #16)
16
Part #24329-MJT-E00
STOPPER (Ref #17)
17
Part #24430-MJT-E00
Spring, drum stopper (Ref #18)
18
Part #24435-MJT-E00
Spindle, gearshift (Ref #19)
19
Part #24610-MJT-E00
PIN, SHIFT STOPPER (Ref #20)
20
Part #24615-MJT-E00
SPRING (Ref #21)
21
Part #24651-MJT-E00
Screw (6x12) (Ref #22)
22
Part #90003-KRN-670
Bolt, flg (7x38.5) (Ref #23)
23
Part #90018-MEY-670
PIVOT (Ref #24)
24
Part #90019-MJT-E00
Bolt, sealing (8mm) (Ref #25)
25
Part #90063-MJT-E00
Washer, thrust, 15mm (Ref #26)
26
Part #90451-107-000
Stopper, bearing (Ref #27)
27
Part #90473-MJT-E00
BEARING (6805C3) (Ref #28)
28
Part #91007-MJT-E01
Bearing (28x54x20.6) (Ref #29)
29
Part #91017-MJT-E01
Bearing (22x38x16) (Ref #30)
30
Part #91023-MJT-E01
Гайка (Ref #31)
31
Part #94050-06000
Dowel pin (Ref #32)
32
Part #94301-08100
Pin b (Ref #33)
33
Part #94302-08100
Pin c (Ref #34)
34
Part #94303-04065
Circlip (Ref #35)
35
Part #94510-15000
Bolt, flange, 6x22 (Ref #36)
36
Part #96001-0602200
