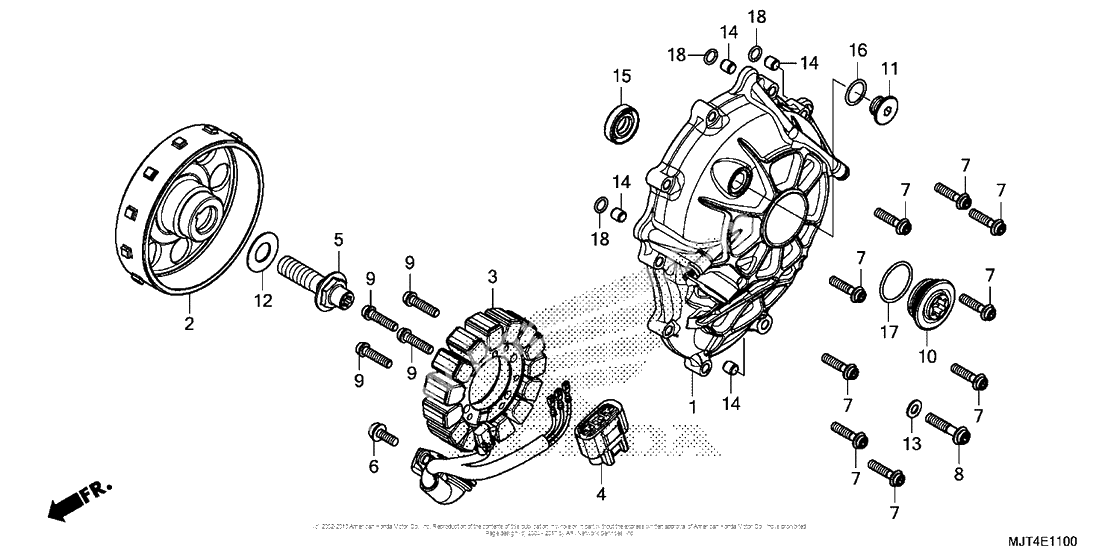

Генератор
Генератор
Cover, alternator (Ref #1)
1
Part #11640-MJT-E00
FLYWHEEL (Ref #2)
2
Part #31110-MJT-E01
STATOR (Ref #3)
3
Part #31120-MJT-E01
CONNECTOR (3P 250 F) (Ref #4)
4
Part #32636-MJT-E00
BOLT, FLANGE (14X47) (Ref #5)
5
Part #90002-MJT-E01
Bolt (6x16) (Ref #6)
6
Part #90010-MJ6-000
Bolt (6x25) (Ref #7)
7
Part #90037-MJT-E00
Bolt (6x28) (Ref #8)
8
Part #90038-MJT-E00
Bolt, socket (6x25) (Ref #9)
9
Part #90066-MJT-E00
Cap (30mm) (Ref #10)
10
Part #90082-MJT-E00
Cap (14mm) (Ref #11)
11
Part #90084-MEN-670
WASHER (14.5X30.5) (Ref #12)
12
Part #90402-MJT-E00
Шайба (Ref #13)
13
Part #90463-ML7-000
Установочный штифт (Ref #14)
14
Part #90702-MB0-000
Oil seal (14x28x7) (Ref #15)
15
Part #91202-MJT-E01
O-ring, 13.8x2.5 (Ref #16)
16
Part #91303-377-000
O-RING (30.8X1.9) (Ref #17)
17
Part #91307-MJT-E00
O-RING (7.8X1.6) (Ref #18)
18
Part #91313-MJT-E00
