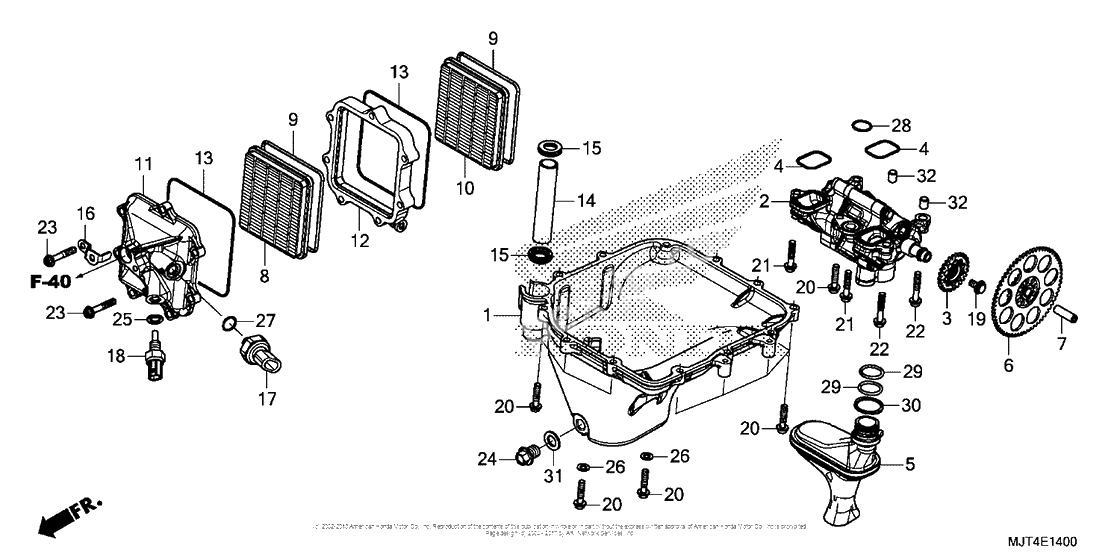

Масляный насос & Поддон
Масляный насос & Поддон
Pan, oil (Ref #1)
1
Part #11211-MJT-E00
Pump assy., oil (Ref #2)
2
Part #15100-MJT-E00
Gear (26t) (Ref #3)
3
Part #15133-MJT-E00
O-ring, oil pump (Ref #4)
4
Part #15147-MJT-E00
STRAINER, OIL (Ref #5)
5
Part #15150-MJT-E01
GEAR (63T/29T) (Ref #6)
6
Part #15170-MJT-E00
SHAFT (Ref #7)
7
Part #15175-MJT-E00
Element, oil filter (Ref #8)
8
Part #15410-MJT-E01
O-RING A, OIL FILTER (Ref #9)
9
Part #15415-MJT-E00
ELEMENT (P2) (Ref #10)
10
Part #15420-MJT-E01
Cover, oil filter (Ref #11)
11
Part #15421-MJT-E00
SPACER, OIL FILTER (Ref #12)
12
Part #15422-MJT-E00
O-RING B, OIL FILTER (Ref #13)
13
Part #15425-MJT-E00
Finder, oil level (Ref #14)
14
Part #15661-MJT-E00
Oil seal (Ref #15)
15
Part #15662-MJT-E00
Stay, clip (Ref #16)
16
Part #32157-MJT-E00
Sensor, oil pressure (Ref #17)
17
Part #37260-MGE-641
Датчик (Ref #18)
18
Part #37750-KPH-701
BOLT, FLANGE (6X12) (Ref #19)
19
Part #90023-MJT-E00
Bolt (6x25) (Ref #20)
20
Part #90037-MJT-E00
Bolt (6x28) (Ref #21)
21
Part #90038-MJT-E00
Bolt (6x32) (Ref #22)
22
Part #90039-MJT-E00
Bolt (6x35) (Ref #23)
23
Part #90040-MJT-E00
Bolt, drain (12mm) (Ref #24)
24
Part #90061-KYJ-900
Шайба (Ref #25)
25
Part #90443-MB0-000
Шайба (Ref #26)
26
Part #90463-ML7-000
Прокладка (Ref #27)
27
Part #91301-MEH-003
O-RING (17MM) (Ref #28)
28
Part #91305-MJT-E00
Прокладка (Ref #29)
29
Part #91310-PH7-000
D-RING (24X29X1.5) (Ref #30)
30
Part #91315-MJT-E00
Шайба (Ref #31)
31
Part #94109-12000
Dowel pin (Ref #32)
32
Part #94301-08100
